KF080M-032-7L - Datasheet

MBA

Category Information

Knobs - Lobe - Seven Lobe - Female - Standard

Standard Female Seven Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M8 (8x1.25mm)
  • Head Diameter (A) 32 mm
    (Equiv. 1.26 in.)
  • Thread Length 13 mm
    (Equiv. 0.512 in.)
  • Colour Black
  • Hub Diameter (C) 26.00 mm
  • Hub Length (D) 18.000 mm
  • Knob Height (B) 13.00 mm
  • Material Brass
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NLZTF8
  • CNLZTF8
View full details

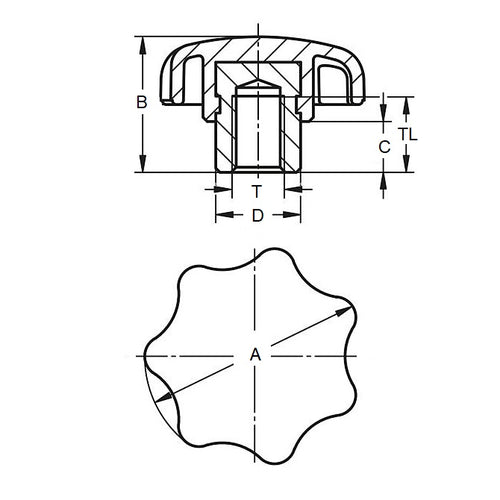

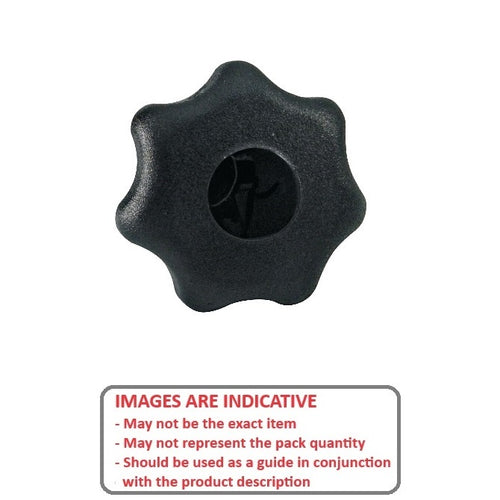

KF080M-032-7LDiagramKF080M-032-7LImage
