KM080M-032-5L10 - Datasheet

MBA

Category Information

Knobs - Lobe - Seven Lobe - Male - Standard

Standard Male Seven Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M8 (8x1.25mm)
  • Head Diameter (A) 32 mm
    (Equiv. 1.26 in.)
  • Thread Length 10 mm
    (Equiv. 0.394 in.)
  • Colour Black
  • Hub Diameter (C) 18.00 mm
  • Hub Length (D) 13.000 mm
  • Knob Height (B) 26.00 mm
  • Material Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NLZTM8-10
  • CNLZTM810
View full details

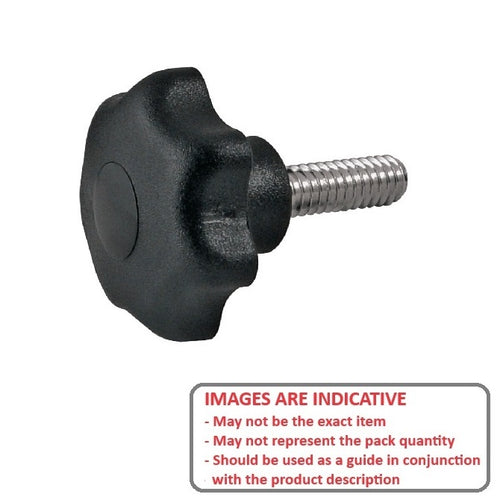

KM080M-032-5L10DiagramKM080M-032-5L10Image
