THS080M-030-K-3 - Datasheet
MBA
Category Information

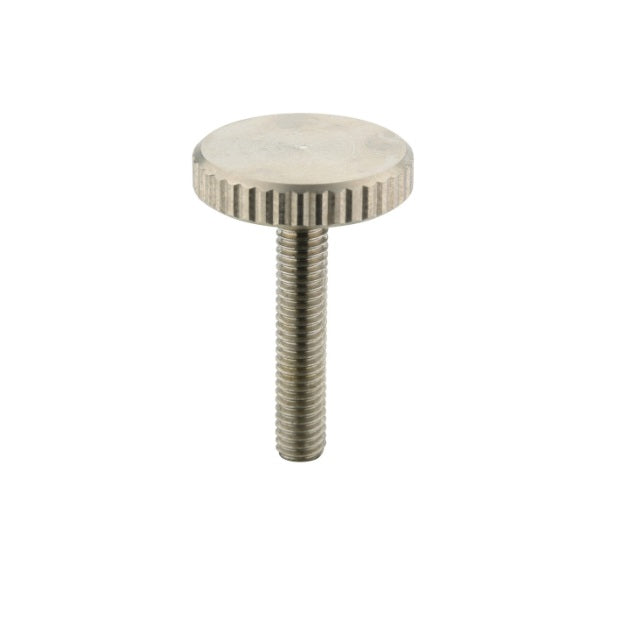

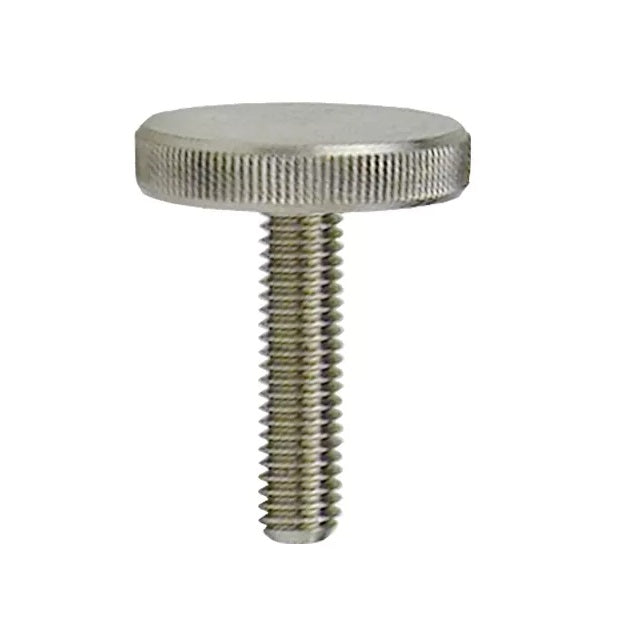

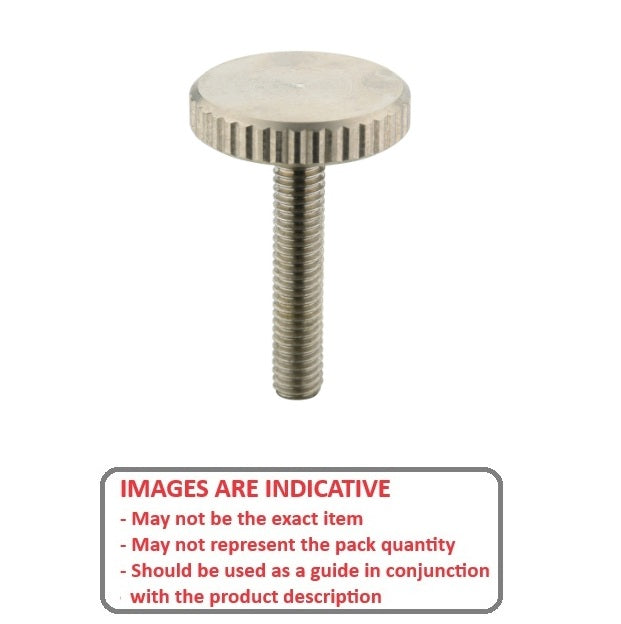

Screws - Thumb - Knurled - Stainless - StandardStandard Stainless Knurled Thumb Screws. Stainless steel knurled head thumb screws
- An expanded range may be available on special order. Please enquire.
Product Data

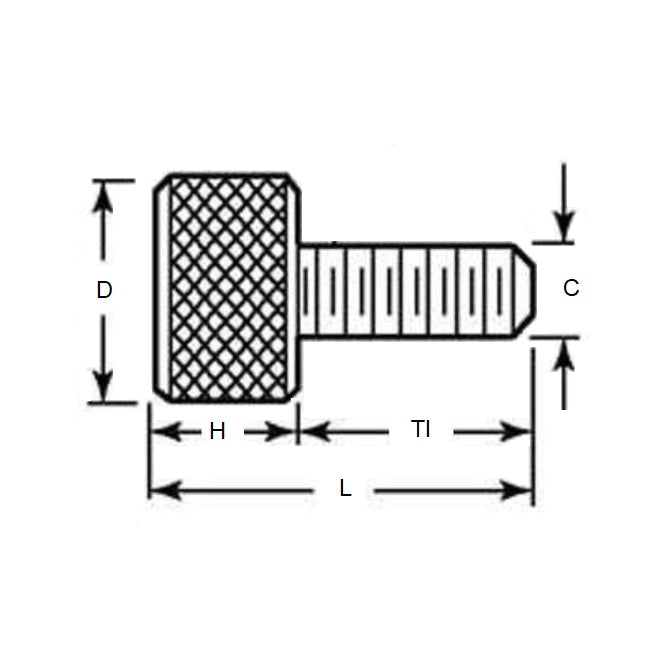

- Thread Size (C) : M8 (8x1.25mm)
- Thread Length (Tl) 30.00 mm
- Overall Length (L) 36.00 mm
- Head Diameter (D) 30.00 mm
- Head Height (H) 6.00 mm
- Finish Plain
- Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi® C-NKOSC8-30-26
- Misumi® C-NOOS8-30
- Misumi® C-NOSC8-30-26
- CNOSC83026
- CNKOSC83026
- CNOOS830
- THS080030K3
