KF080M-030-LVR - Datasheet
MBA
Category Information

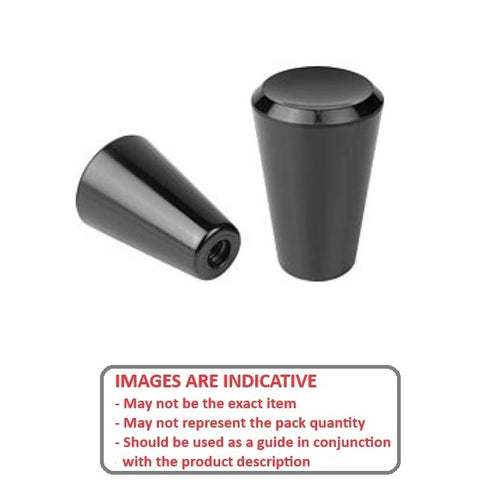

Knobs - Lever - Threaded BoreThreaded Bore Lever Knobs. Lever knobs with moulded female threads, ideal for direct attachment to operating levers.
- Plastic (high grade gloss black phenolic) with Steel insert.
- Temperature Range: -30oC to +140oC.
- All knobs are fitted with a brass female insert.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

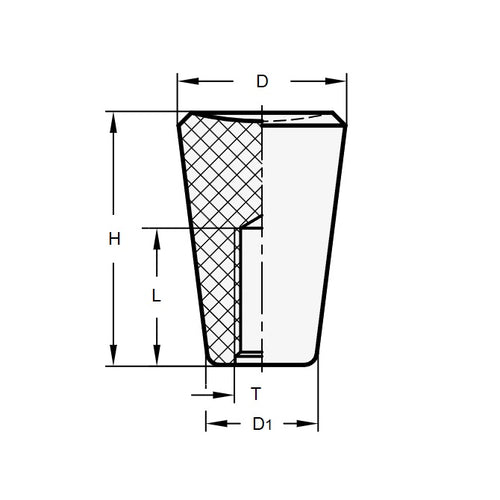

- Thread Size : M8 (8x1.25mm)
- Major Diameter
30.00
mm
(Equiv. 1.181 in.) - Thread Length
15.0
mm
(Equiv. 0.591 in.) - Height 45.00 mm
- Diameter (D1) 18.00 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- 712025
- 712-025
