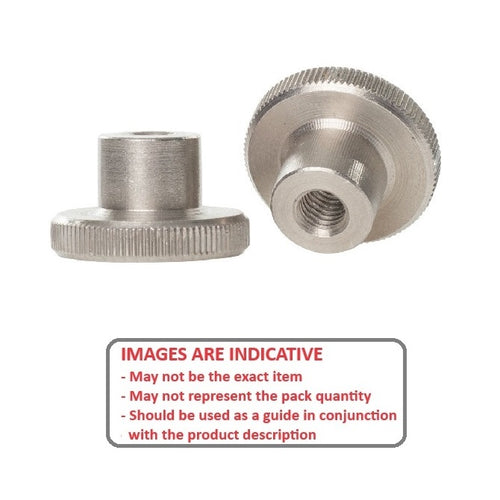

NT080M-TH18-S3 - Datasheet

MBA

Product Data

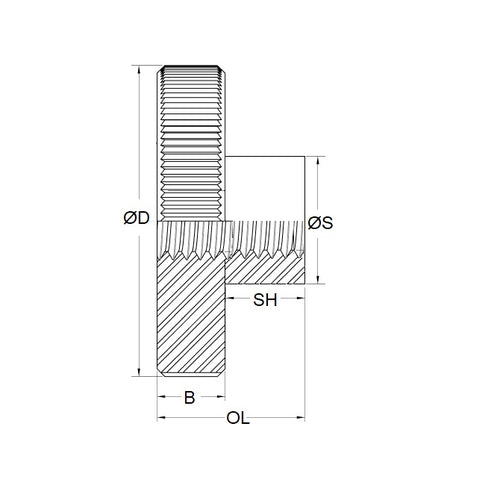

• Thread Size : M8 (8x1.25mm)
• Overall Length 18 mm
• Head Width (B) 18.00 mm
• Head Diameter 30.00 mm
• Shoulder Diameter N/A mm
• Shoulder Height N/A mm
• Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Misumi® C-NKMS8
• CNKMS8
