KF080M-025-KN-PH - Datasheet

MBA

Category Information

Knobs - Knurled - Female - Plastic

Plastic Female Knurled Knobs. Black ABS Plastic head.

  • Temperature Range: -30oC to +140oC.

Product Data

  • Thread Size : M8 (8x1.25mm)
  • Head Diameter (D) 25.000 mm
    (Equiv. 0.984 in.)
  • Screw Depth (L) 15.000 mm
    (Equiv. 0.591 in.)
  • Colour Black
  • Brass
  • Top Dia. (D1) 16.50 mm
  • Hub Length (H1) 16.000 mm
  • 7.00
  • Material Phenolic
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NDZF8
  • CNDZF8
View full details

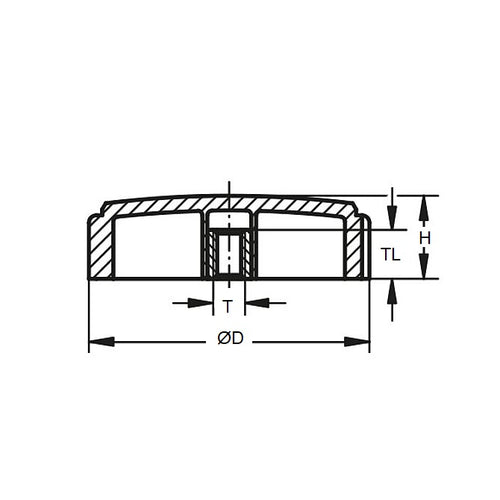

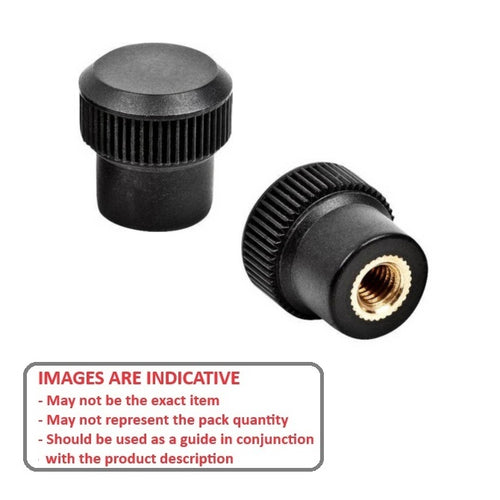

KF080M-025-KN-PHDiagramKF080M-025-KN-PHImage
