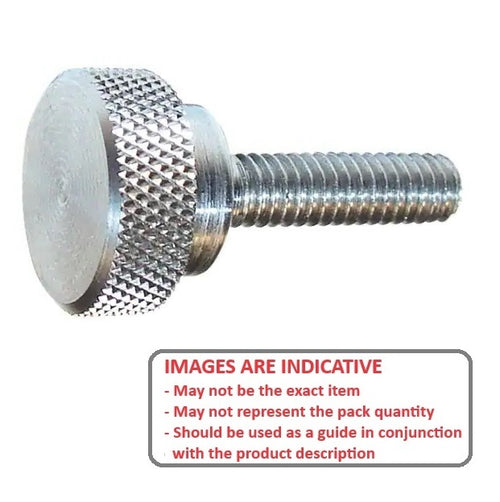

THS080M-025-K-3-SHL - Datasheet

MBA

Product Data

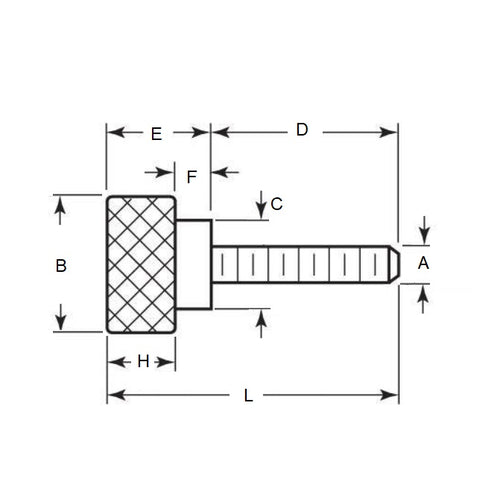

• Thread Size (A) : M8 (8x1.25mm)
• Thread Length (D) 25.00 mm
• Overall Length (L) 43.000 mm
• Head Diameter (B) 30.00 mm
• Head Height incl Shoulder (E) 18.00 mm
• Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• PDF Screws Catalogue

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Misumi® C-NKOS8-25
• CNKOS825
