SS080M-0200-ASP - Datasheet

MBA

Product Data

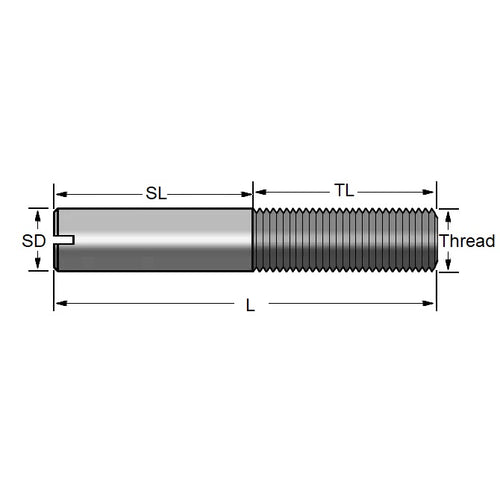

• Thread Size : M8 (8x1.25mm)
• Overall Length (L) 20 mm
  (Equiv. 0.787 in.)
• Type Partial Thread
• Thread Length 9.60 mm
• Shaft Length 10.40 mm
• Shaft Diameter 8.00 mm - 0.022 / + 0.000
• Slotted
• Material Steel Alloy, Rockwell B75

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
