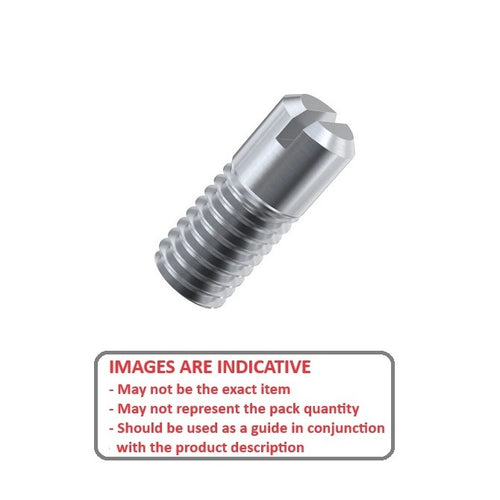

SS080M-0160-ASP - Datasheet

MBA

Product Data

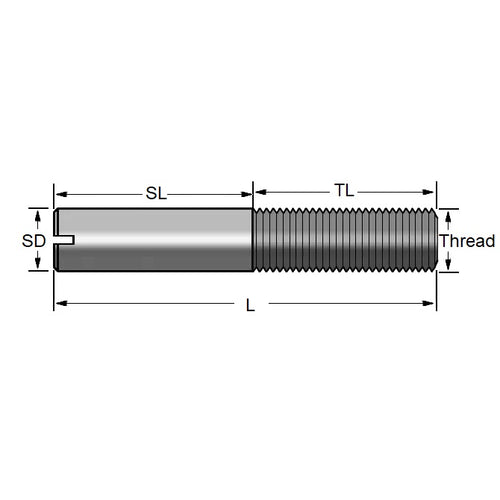

• Thread Size : M8 (8x1.25mm)
• Overall Length (L) 16 mm
  (Equiv. 0.63 in.)
• Type Partial Thread
• Thread Length 9.60 mm
• Shaft Length 6.40 mm
• Shaft Diameter 8.00 mm - 0.022 / + 0.000
• Slotted
• Material Steel Alloy, Rockwell B75
