Miniature Bearings Australia

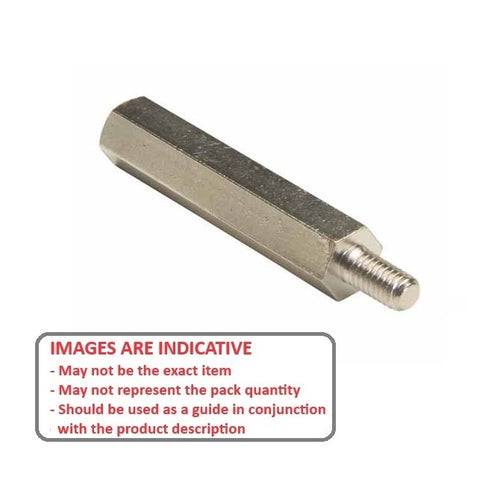

SHX-TP-0800-14-040-MZ - Datasheet
MBA
Product Data

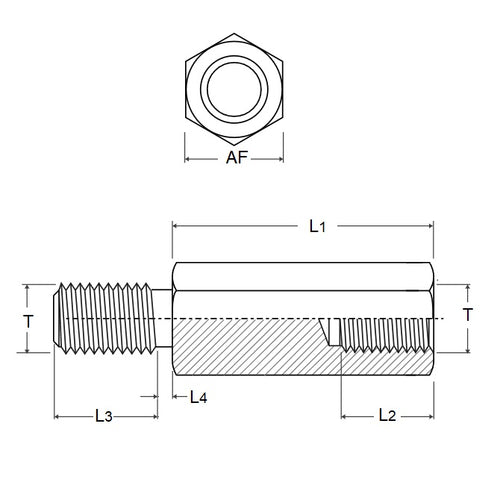

- Thread Size : M8 (8x1.25mm)
- Stud Length (L3) 12.000 mm
- Base Length (L1) 40 mm
- Across Flats (A/F) 14.00 mm
- Bore Thread Length (L2) 16.00 mm
- Finish Nickel Electroplating
- Material Steel - Mild
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-PLSBWRK14-40
- CPLSBWRK1440
