SS080M-0100-AS-AT - Datasheet
MBA
Category Information

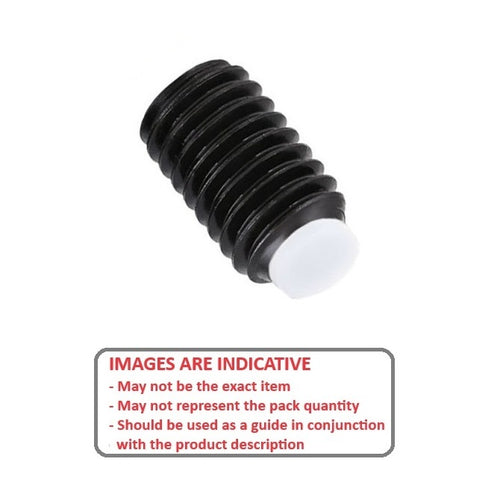

Socket Set Screws - Acetal Tipped - Alloy SteelAlloy Steel Acetal Tipped Socket Set Screws. Acetal tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.
- Socket driven grub screws that uses a non-metallic tip made of acetal to prevent damage to the shaft it secures.
- Acetal tip compresses into the threads of the set screw and conforms to the surface of the shaft, providing a self-locking mechanism and preventing marring or indentation, unlike traditional metal-tipped set screws.
Product Data
- Thread Size : M8 (8x1.25mm)
- Thread Length (L)
10.0
mm
(Equiv. 0.394 in.) - Type Acetal Tipped
- Overall Length (L + L1) 12.000 mm
- Tip Diameter (d) 6.000 mm
- Tip Length (L1) 2.000
- Pitch 1.25 mm
- Threads Per Inch 20.320 TPI
- Material Black Oxide Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi SBPP8-10
- SBPP810
