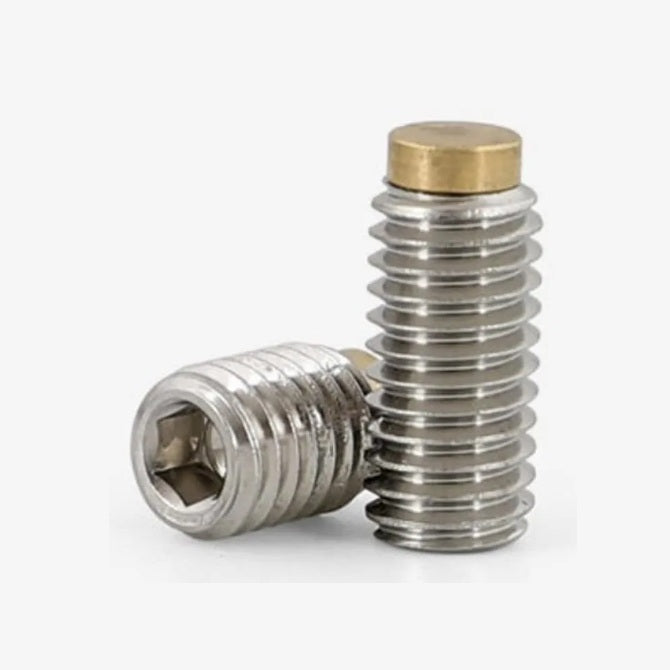

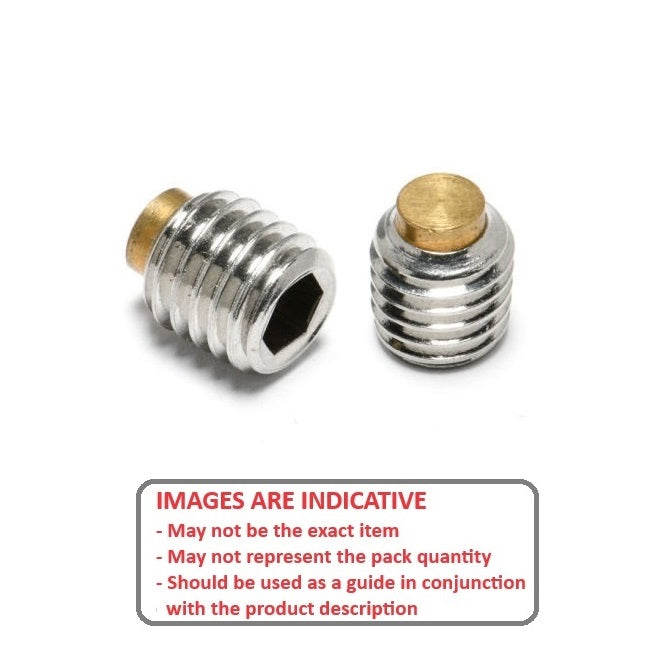

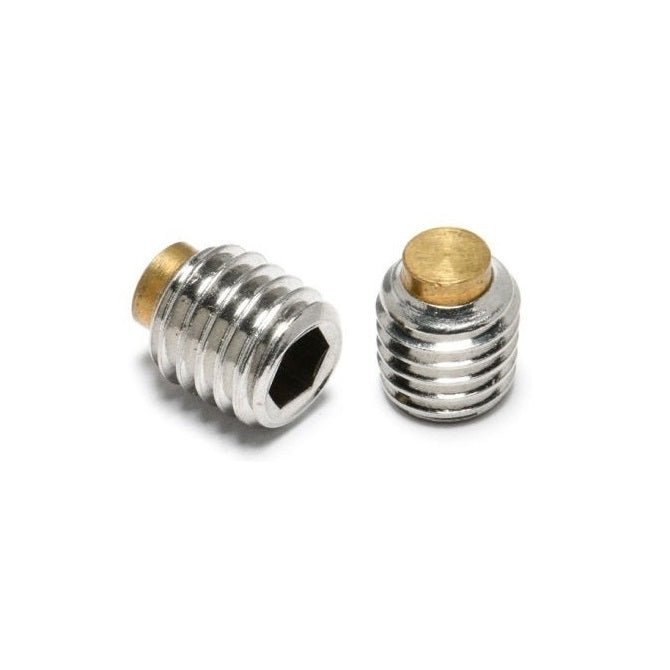

SS060M-0060-S3-BT - Datasheet

MBA

Product Data

• Thread Size : M6 (6x1mm)
• Thread Length (L) 6.0 mm
  (Equiv. 0.236 in.)
• Type Brass Tipped
• Overall Length (L + L1) 7.0 mm
• Tip Diameter (d) 4.0 mm
• Tip Length (L1) 1.0
• Hex Key Size 3.00
• Pitch 1.000 mm
• Threads Per Inch 25.4 TPI
• Material Stainless Steel 18-8 (Similar to A2, 303, 304)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 90418A441
