SS060M-0400-CZ - Datasheet
Brighton Best
Category Information
Socket Set Screws - Standard Cup Point - Zinc Plated DIN916Zinc Plated DIN916 Standard Cup Point Socket Set Screws. Standard grub screws. UNC - UNF - BA - METRIC.

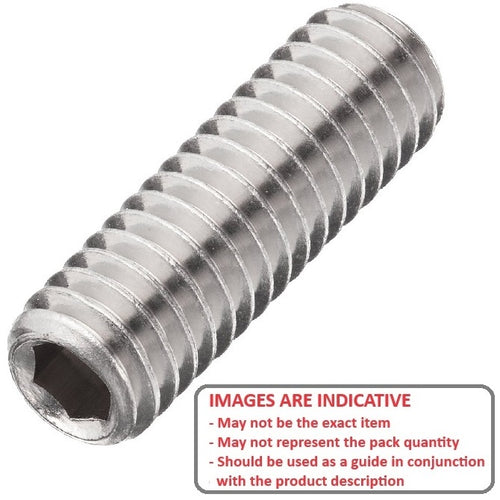

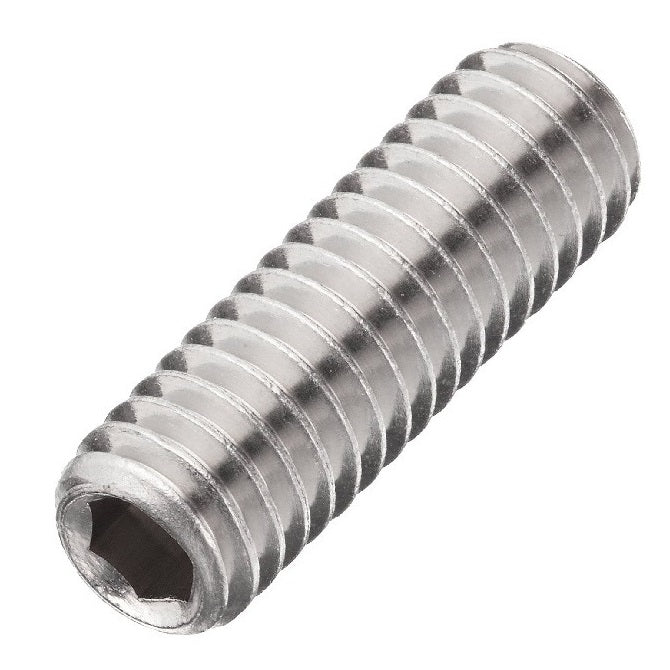

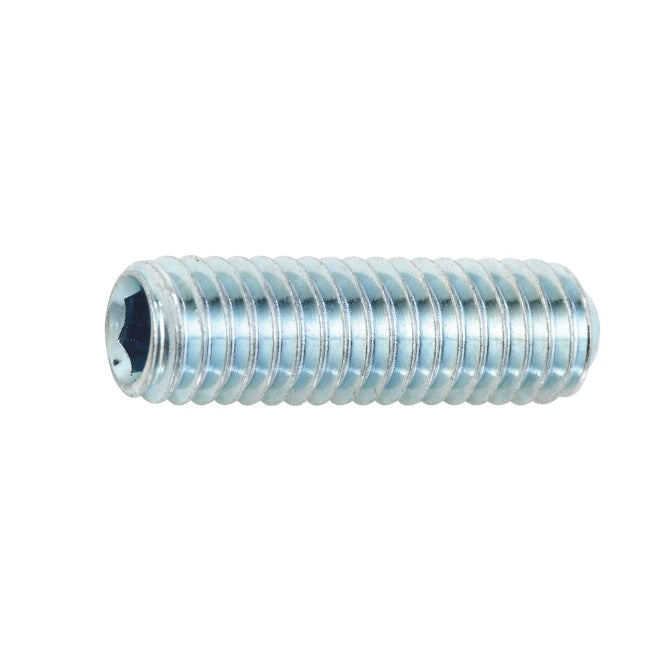

- Socket driven grub screw with a standard cup point.
Product Data

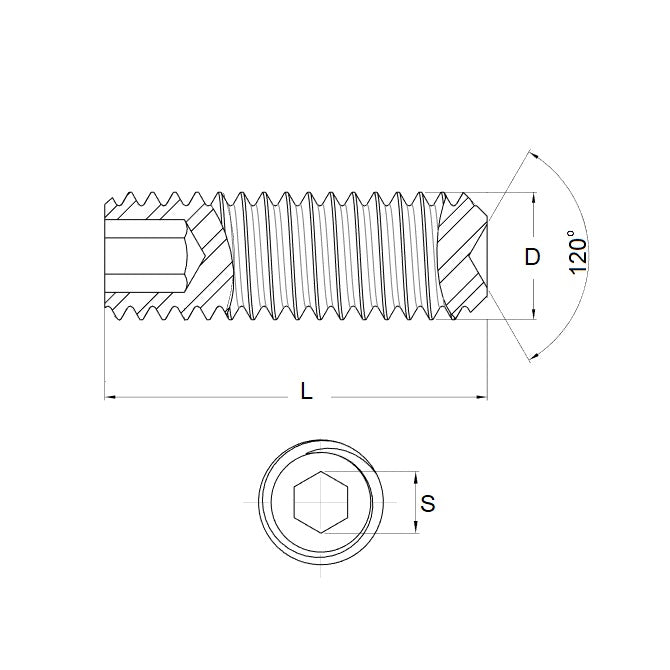

- Thread Size : M6 (6x1mm)
- Thread Length (L) 40.0 mm
- Type Standard Cup Point
- Hex Key Size 3.00 mm
- Pitch 1.000 mm
- Threads Per Inch 25.4 TPI
- Finish Zinc Plated
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best® 877088
