SUS300RS - Datasheet

MBA

Category Information

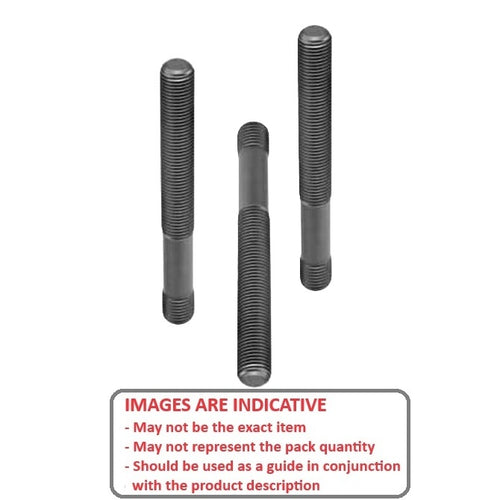

Threaded Rod - Clamping Studs

Clamping Studs Threaded Rod. Steel and 303 stainless steel.

  • Threaded metal rods or posts that serve as a crucial component in workholding systems to securely fasten workpieces, fixtures, and machinery like vices to a table or machine bed.
  • Used in conjunction with T-nuts, flange nuts, or specialized zero-point clamping systems, provide high-precision, repeatable, and fast setups by creating a secure point of contact and allowing for quick adjustments.
  • Metric and imperial sizes.
  • Yield strength 100,000 PSI. Tensile strength 125,000 PSI

Product Data

Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

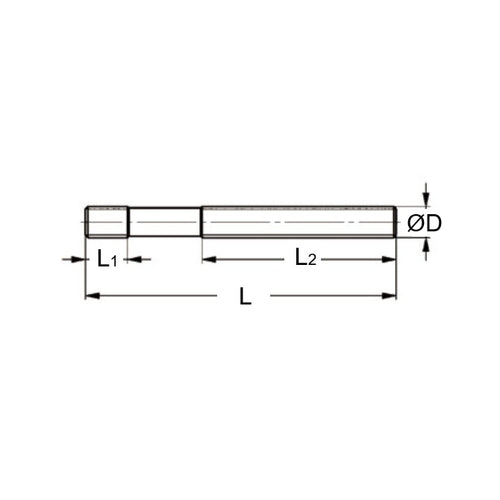

  • Thread : M6 (6x1mm)
  • Length (L) 32.00 mm
    (Equiv. 1.26 in.)
  • Thread Length (A) 9
  • Thread Length (B) 16 mm
  • Hardness Class 10.9
  • Material Steel with Rolled Threads
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • SUS300
