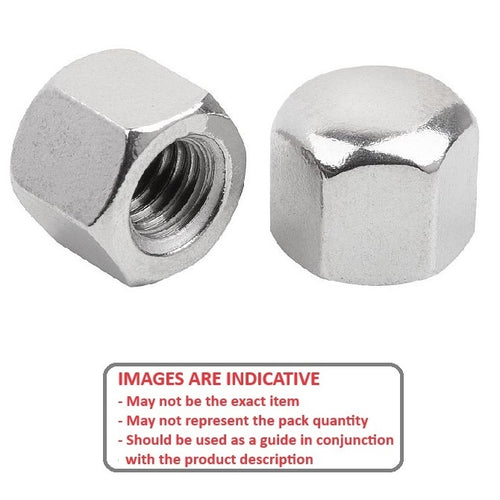

NT060M-CP-S4 - Datasheet

Brighton Best

Product Data

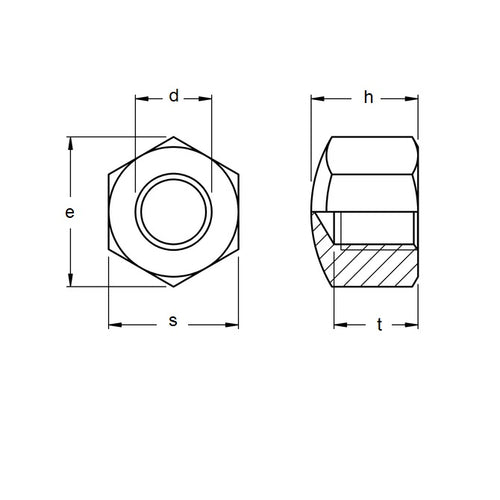

• Thread Size : M6 (6x1mm)
• Material 304 Stainless
• Height (h) 8.64 - 9.0 mm
  (Equiv. 0.34 in.)
• Base Height (t) 6.71 to 7.29 mm
• Across Flats (s) 10 (min 9.78)
• Across Tips (e) min. 11.05 mm
• Pitch 1.000 mm
• Threads Per Inch 25.4 TPI
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
