Miniature Bearings Australia
SC060M-025-P-SL-BR - Datasheet
MBA
Category Information
Screws - Pan Head - Slotted - BrassBrass Slotted Pan Head Screws. Brass metal thread machine screws METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data

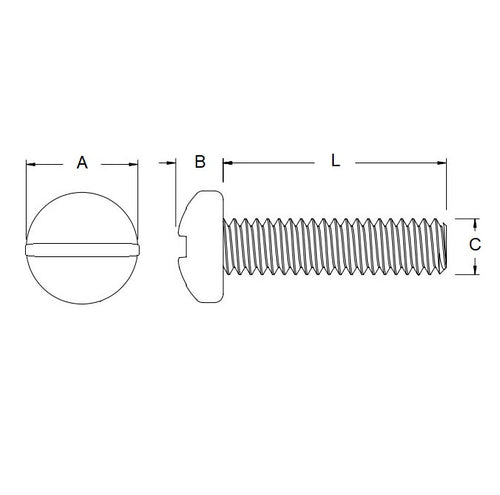

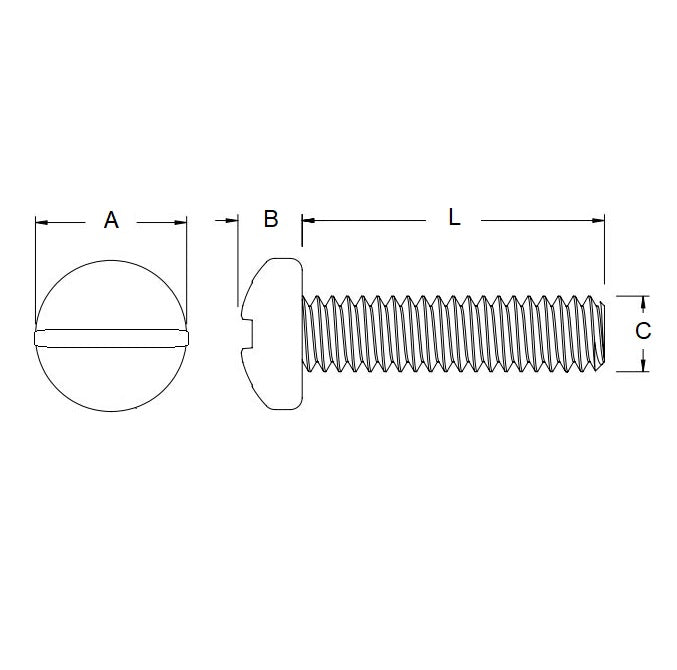

- Thread Size (C) : M6 (6x1mm)
- Thread Length (L)
25
mm
(Equiv. 0.984 in.) - Material Brass
- Max Head Diameter 12.0 mm
- Max Head Height 4.6 mm
- Pitch 1.000 mm
- Threads Per Inch 25.4 TPI
- Material Brass
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90928A399
- Hitech BRPSP625
