Miniature Bearings Australia
SKS0600-020-SK-S4 - Datasheet
MBA
Category Information

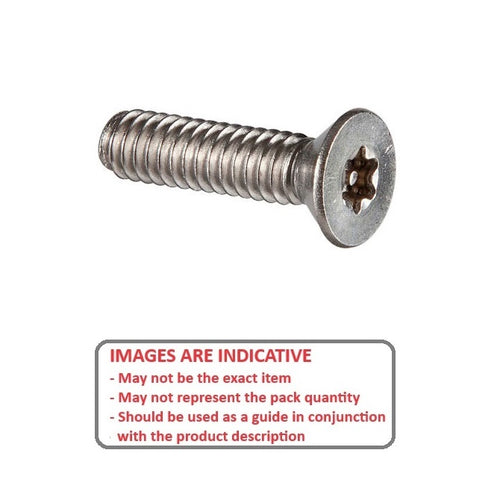

Screws - Security - Socket - Countersunk - StainlessStainless Countersunk Socket Security Screws. Metric only.
- Use special tool listed under Screws - Security - Socket - Tools.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

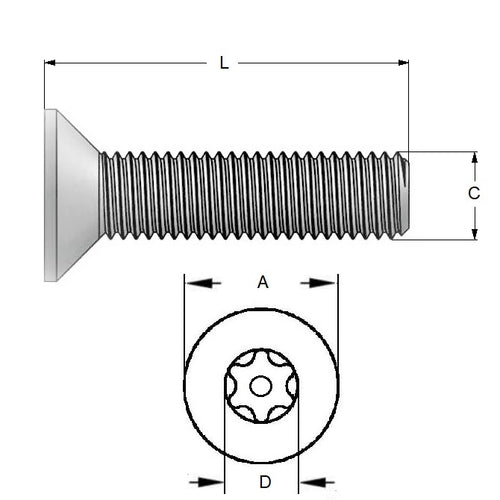

- Thread Size (C) : M6 (6x1mm)
- Length
20
mm
(Equiv. 0.787 in.) - Material 304 Stainless
- Tool To Match MD7TOOL-M6
- Pitch 1.000 mm
- Threads Per Inch 25.4 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MD7CM6-20
