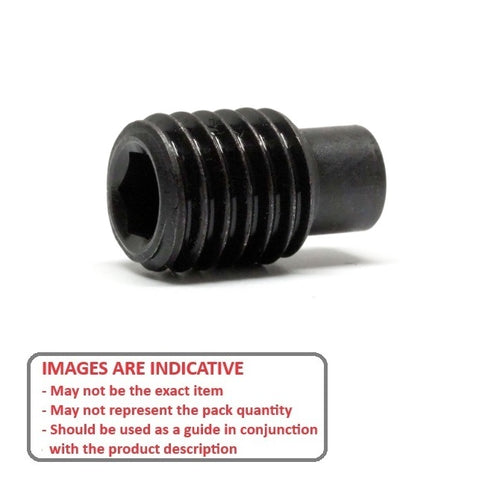

SS060M-0200-AS-DP - Datasheet

SSA

Product Data

• Thread Size : M6 (6x1mm)
• Thread Length (L) 16.8 mm
  (Equiv. 0.661 in.)
• Type Dog Point
• Overall Length (L + L1) 20.0 mm
• Tip Diameter (d) 3.7 - 4.0 mm
• Tip Length (L1) 3.0 - 3.3 mm
• Hex Key Size 3.00
• Pitch 1.000 mm
• Threads Per Inch 25.4 TPI
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best 833080
