SS060M-0168-S4-PO-RB - Datasheet
MBA
Category Information

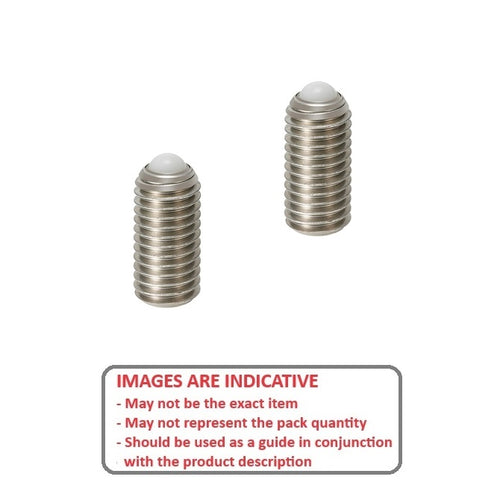

Socket Set Screws - Rolling Ball Tip - Stainless SteelStainless Steel Rolling Ball Tip Socket Set Screws. Rolling ball tip for locating into a hole
- Rolling ball set screws are not designed to bear heavy loads.
- Used to lightly fasten fragile work pieces.
- We would recommend testing if you plan to use them in a load bearing application
- Various ball materials include Alumina, Polyacetal or 440C Stainless Steel
Product Data

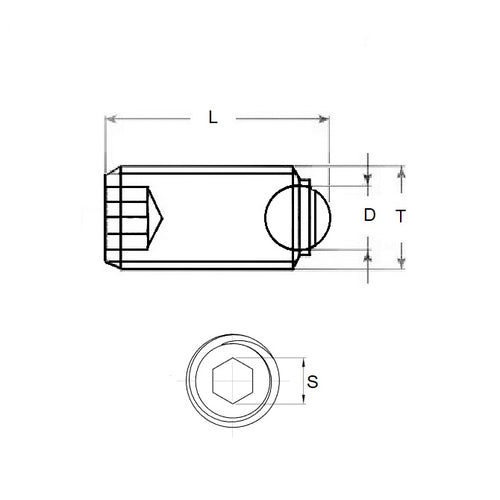

- Thread Size : M6 (6x1mm)
- Thread Length (L)
15.9
mm
(Equiv. 0.626 in.) - Type Rolling Ball Tip
- Overall Length (L) 16.8 mm
- Ball Diameter (D) 4.0 mm
- Hex Key Size 3.0
- Body Material 304 Stainless Steel
- Ball Material Polyacetal
- Pitch 1.0 mm
- Threads Per Inch 25.4 TPI
- Material 304 Stainless Steel with Polyacetal tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi BSRJ6X16-SUS
- BSRJ6X16SUS
