SS060M-0155-S4-S440-FB - Datasheet
MBA
Category Information

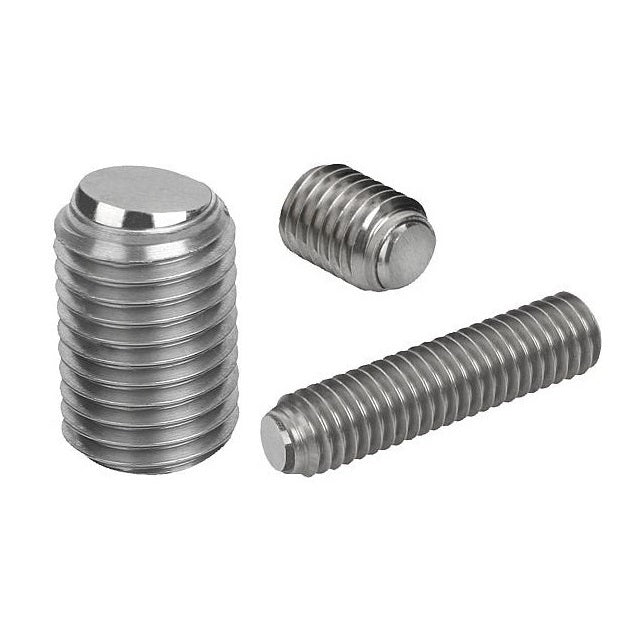

Socket Set Screws - Flat Tip Aligning - Stainless SteelStainless Steel Flat Tip Aligning Socket Set Screws. Grub screws with a pivoting flat tip. The ball can pivot up to 9 Deg. To fasten the object securely to misaligned parts.
- Socket driven grub screws with a rotating flat tip.
- Also known as a flat ball tip set screw or a clamping screw
Product Data
- Thread Size : M6 (6x1mm)

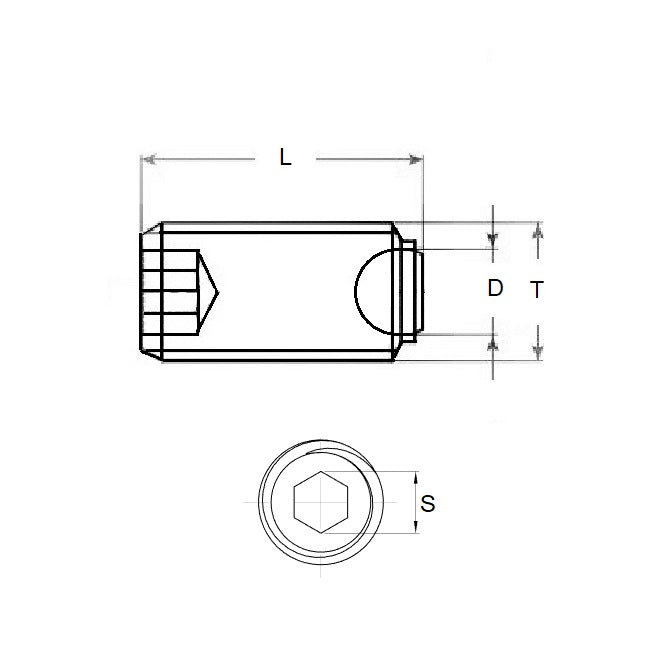

- Thread Length (L)
15.5
mm
(Equiv. 0.61 in.) - Type Aligning Flat Tip
- 16.0
- Ball Diameter (D) 3.3
- Hex Key Size 3.0
- Body Material 304 Stainless Steel
- Ball Material 440C Stainless HRC 50-55
- Pitch 1.0 mm
- Threads Per Inch 25.4 TPI
- Material 304 Stainless Steel with 440C Stainless HRC 50-55 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi BSF6X16-SUS
- Misumi FSU6-16
- Misumi SCSS-M6X16-FB
- BSF6X16SUS
- SCSSM6X16FB
- FSU616
