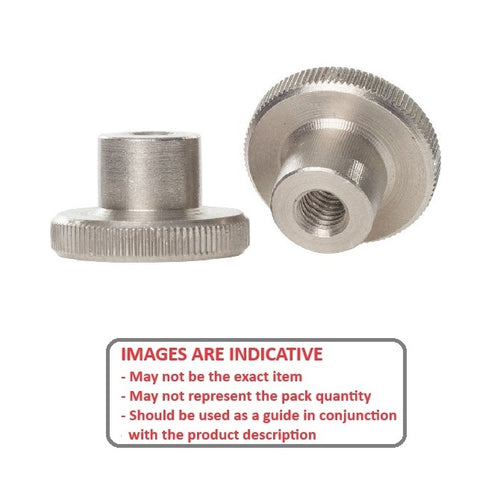

NT060M-TH2410-S3 - Datasheet

MBA

Product Data

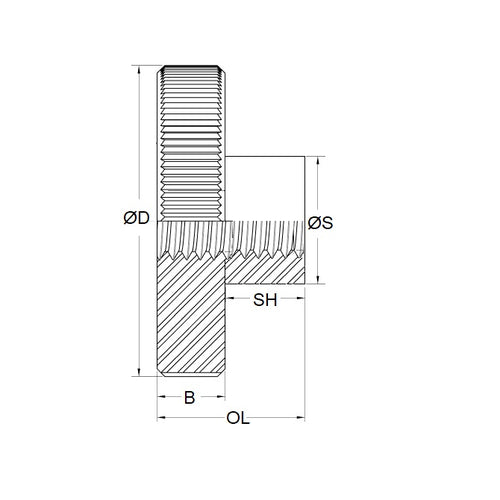

• Thread Size : M6 (6x1mm)
• Overall Length 15 mm
• Head Width (B) 5.00 mm
• Head Diameter 24.00 mm
• Shoulder Diameter 12.00 mm
• Shoulder Height 10.00 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 90368A300
• PTN612
• PTN-612
