SC060M-012-P-SL-N - Datasheet
MBA
Category Information

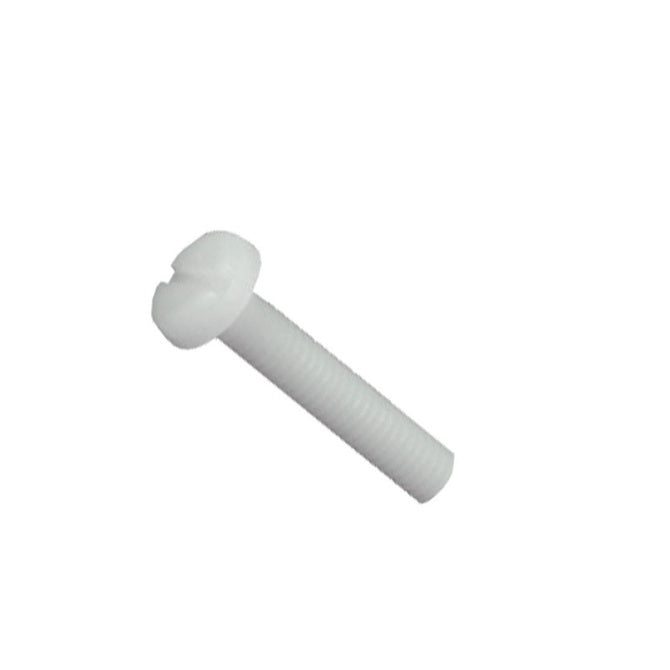

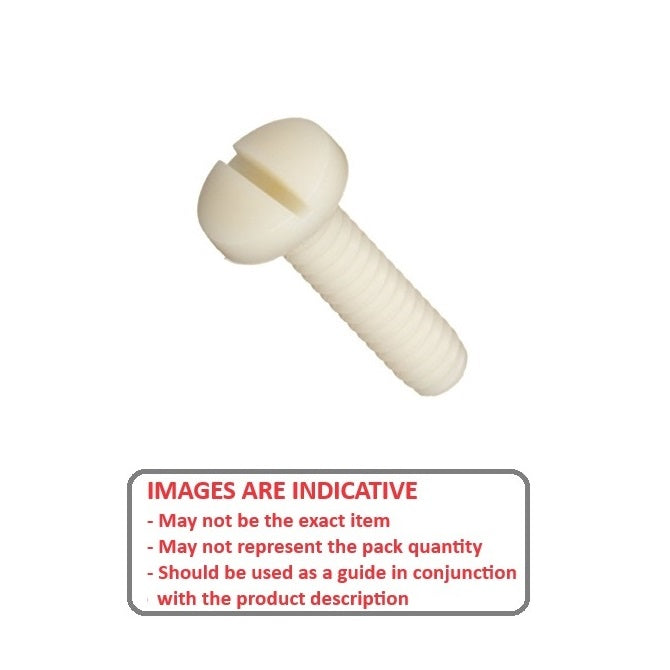

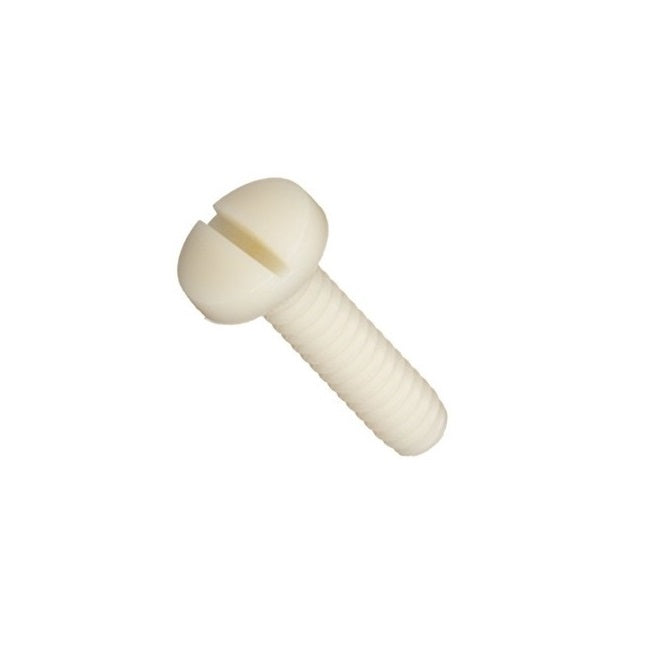

Screws - Pan Head - Slotted - NylonNylon Slotted Pan Head Screws. UNC - UNF - Metric
- An expanded range may be available on special order. Please enquire.
- Non Conductive.
- Non Corrosive.
- Non Magnetic.
- Lightweight.
- Vibration Resistant.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

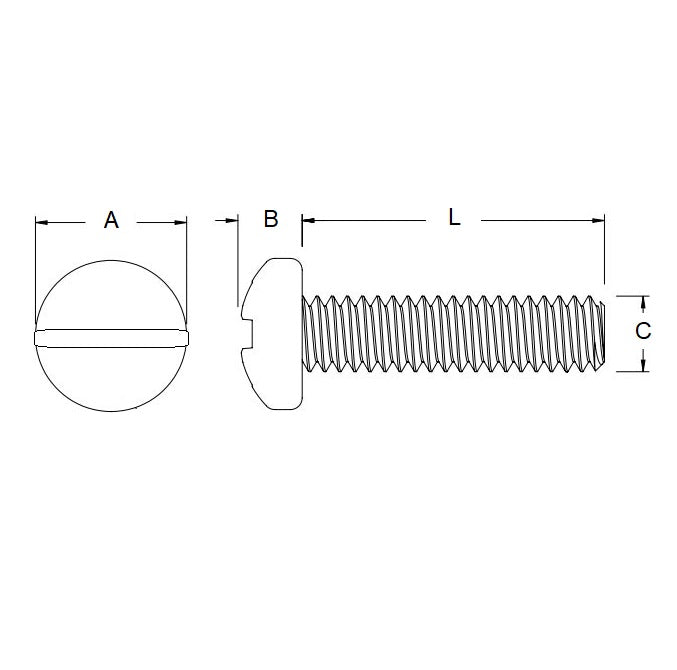

- Thread Size (C) : M6 (6x1mm)
- Thread Length (L)
12
mm
(Equiv. 0.472 in.) - Material Nylon
- Max Head Diameter 12.0 mm
- Max Head Height 4.6 mm
- Pitch 1.000 mm
- Threads Per Inch 25.4 TPI
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 253262
- 92942A835
- SHMN612
- SHMN6-12
