SS060M-0120-AS-FT - Datasheet
SSA
Category Information
Socket Set Screws - Flat Tip DIN913 - Alloy SteelAlloy Steel Flat Tip DIN913 Socket Set Screws. Flat tip grub screws
- Socket driven grub screws with a solid flat tip.
Product Data
- Thread Size : M6 (6x1mm)

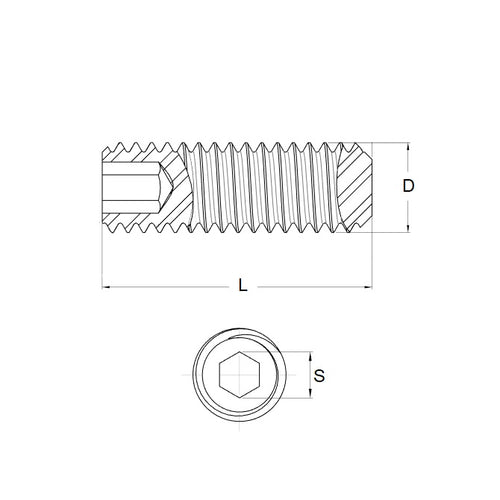

- Thread Length (L)
12.0
mm
(Equiv. 0.472 in.) - Type Standard Cup Point
- Hex Key Size 3.00
- Pitch 1.000 mm
- Threads Per Inch 25.4 TPI
- Finish Hardened, Black Oxide Coated
- Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 832076
- 93245A129
