SC060M-010-C-SK-A - Datasheet
MBA
Category Information

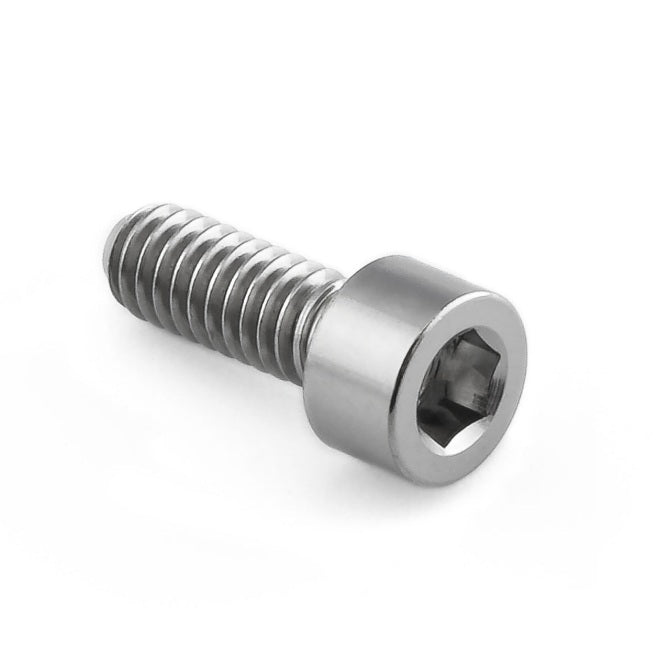

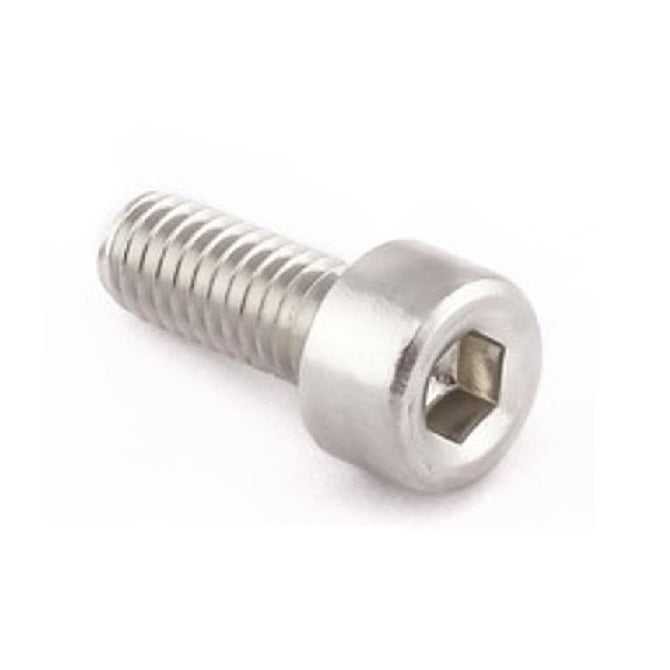

Screws - Socket Cap - AluminiumAluminium Socket Cap Screws. Variety of colours available.
- An expanded range may be available on special order. Please enquire.
- Other colours available on request. Minimum quantities will apply.
- Metric Sizes to DIN912.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M6 (6x1mm)
- Thread Length (L)
10
mm
(Equiv. 0.394 in.) - Material Aluminium
- Head Length (B Max.) 6.0 mm
- Head Diameter (A Max.) 10.0 mm
- Drive Depth (E) 3.00 mm
- Shank Diameter (C) 5.82 - 6.00 mm
- Hex Key (D) 5.00 mm
- Colour Clear Anodised
- Pitch 1.000 mm
- Threads Per Inch 25.4 TPI
- Min thread Length 10 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- CMA610
- CMA6-10
