Miniature Bearings Australia
SS060M-0099-S4-NT - Datasheet
MBA
Category Information

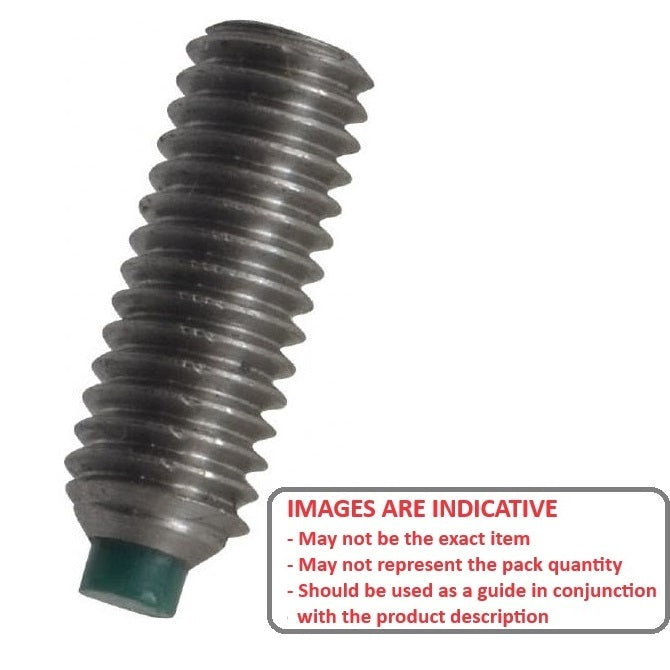

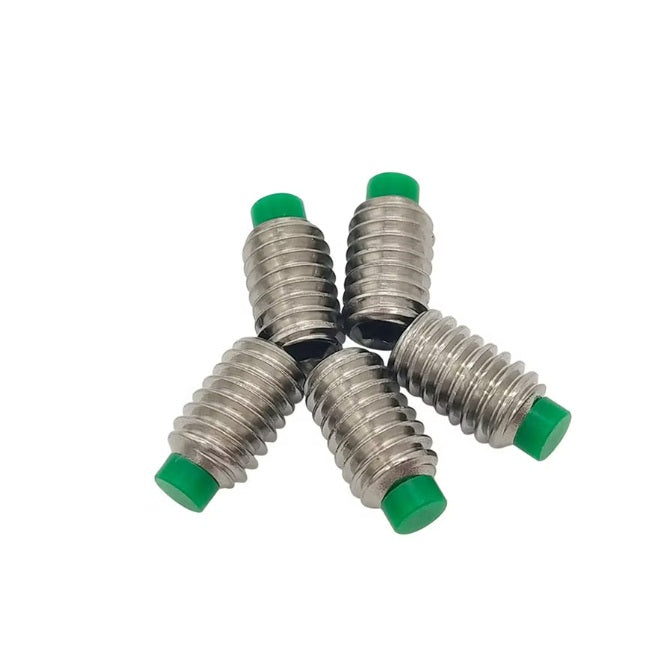

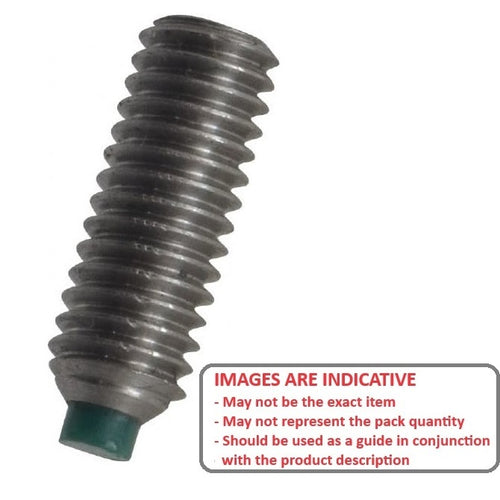

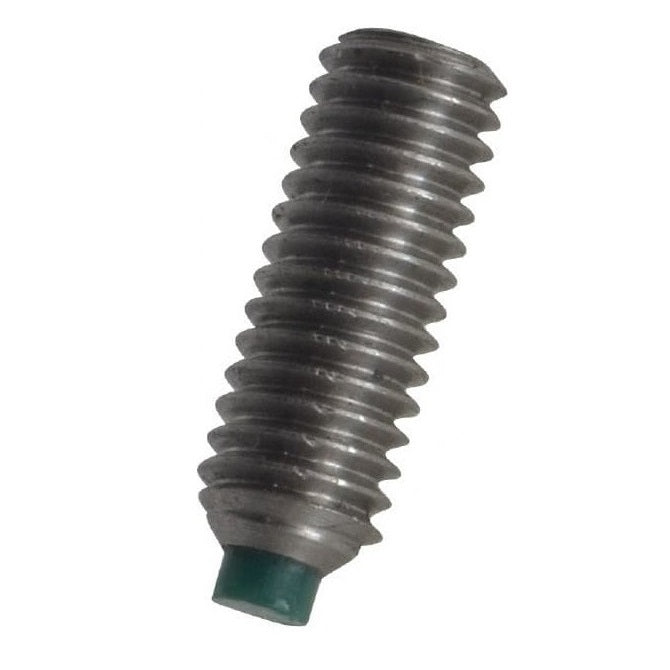

Socket Set Screws - Nylon Tipped - 304 Stainless Steel304 Stainless Steel Nylon Tipped Socket Set Screws. Nylon tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.
Product Data
- Thread Size : M6 (6x1mm)
- Thread Length (L)
9.9
mm
(Equiv. 0.39 in.) - Type Nylon Tipped
- Overall Length (L + L1) 11.5 mm
- Tip Diameter (d) 3.2 mm
- Tip Length (L1) 1.6
- Hex Key Size 3.00
- Pitch 1.000 mm
- Threads Per Inch 25.4 TPI
- Drive Type Socket
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- A9X93MSO060115
