KHD-208RS - Datasheet

MBA

Category Information

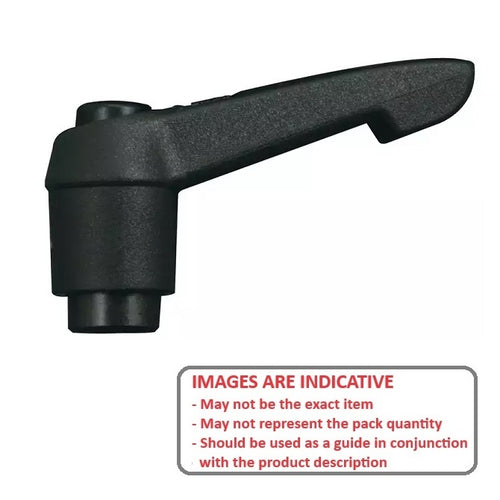

Handles - Adjustable Tapped and Reamed

Adjustable Tapped and Reamed Handles. Adjustable Handles

  • Either Black Plastic with fibreglass reinforcing or Powdered Coated Zinc Novo-Grip Adjustable handles with either a Tapped or Reamed Hole.
  • These handles act as a standard clamping lever, yet can be adjusted to 16-26 positions depending on size. Pulling up on handle disengages, while the insert remains stationary.
  • Allowing you to adjust the handle to the desired position. Releasing the handle reengages it for tightening and loosening. Allows for convenient positioning for Maxium leverage as well as saving space.

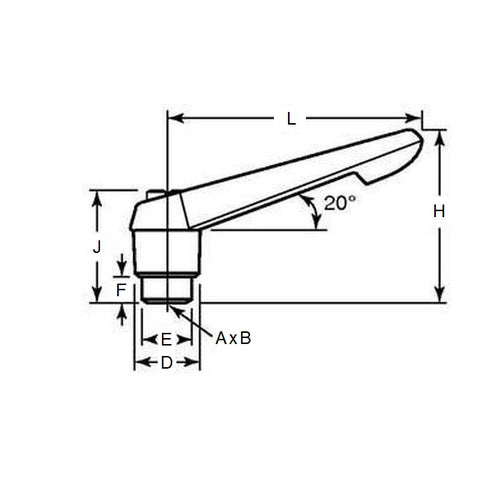

Product Data

  • Thread (A) : M6 (6x1mm)
  • Material Plastic with Fireglass reinforcements
  • Handle Length (L) 65.0 mm
    (Equiv. 2.559 in.)
  • Hub Diameter (E) 13.5 mm
  • Total Height (H) 43.0 mm
  • Hub Height (F) 6.5 mm
  • Base Height (J) 29.0 mm
  • Handle Diameter (D) 18.0 mm
  • Thread Depth (B) 12.0 mm
  • Material Plastic with Fireglass reinforcements
Country of Origin: US
