KLI-060M-100-10 - Datasheet
MBA
Category Information

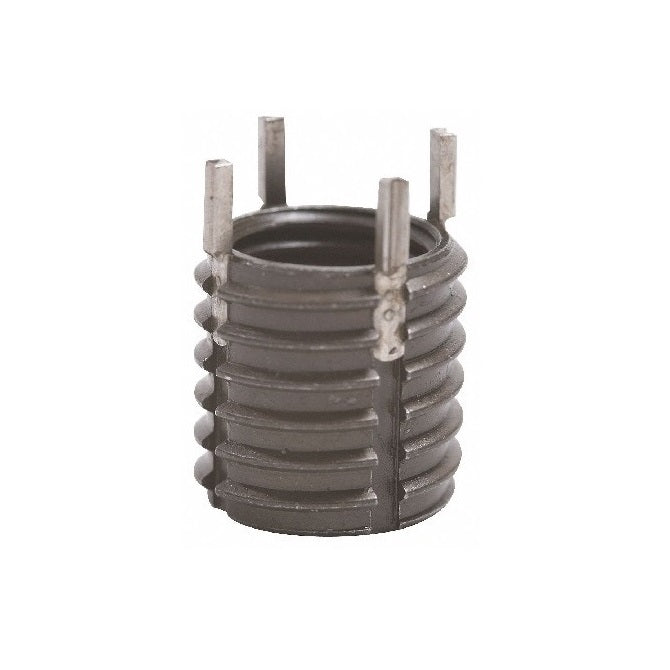

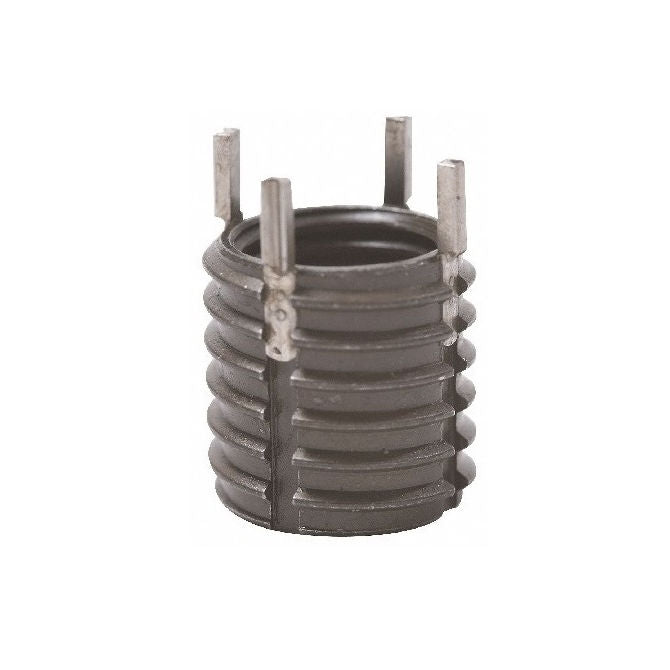

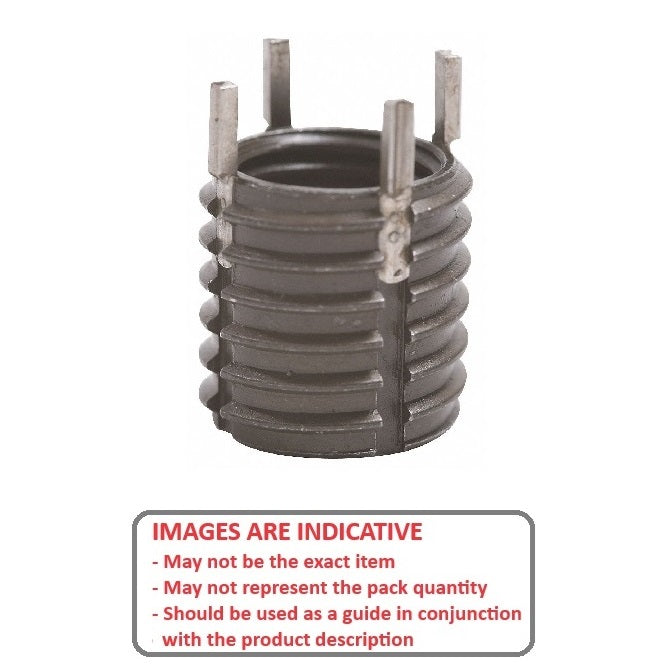

Thread Repair - Inserts - KeylockingKeylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.
- Steel or 303 Stainless Steel as indicated in the tables
- Maximum strength and reliability.
- Positive mechanical lock against rotation:.

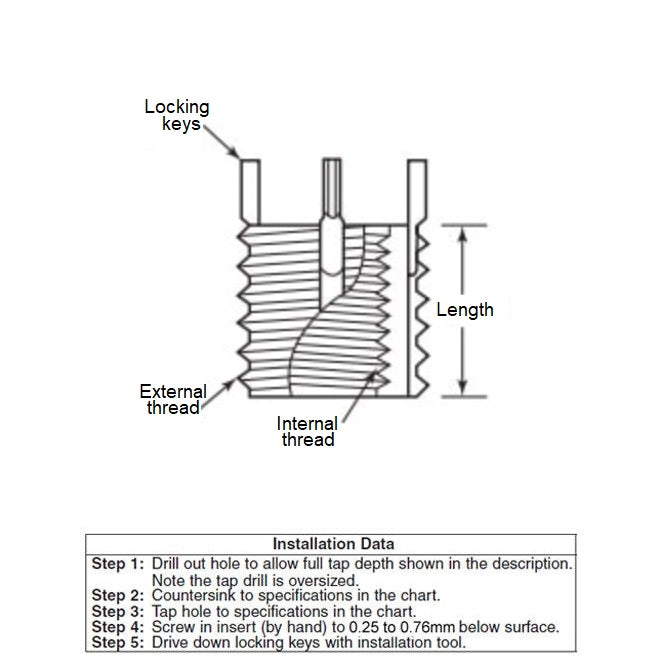

- The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
- Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.
Product Data
- Internal Thread : M6 (6x1mm)
- External Thread M10 x 1.25
- Length
10.000
mm
(Equiv. 0.394 in.) - Tap Drill Diameter 8.80 mm
- Countersink Diameter 10.250 mm
- Locking Keys 4
- Tapped Hole Depth 11.500 mm
- Removal Drill Size 7.500 mm
- Removal Drill Depth 4.750 mm
- Installation Tool KLI-64752RS
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 60245A171
- KLI-65952
- KLI65952
