MEB-50RS - Datasheet

MBA

Category Information

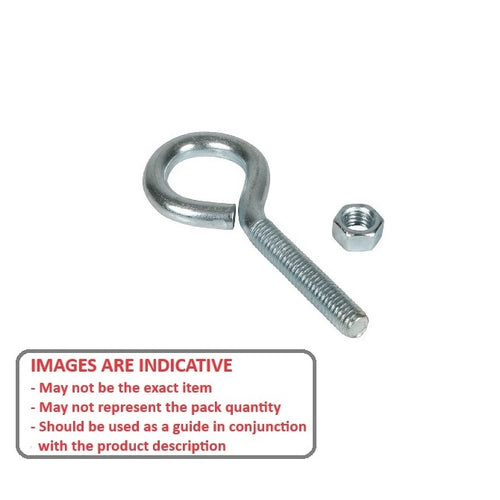

Eye Bolts - Bent - Steel

Steel Bent Eye Bolts. Not recommended for lifting.

  • Fastener with a loop or eye at one end, and a threaded shank on the other.
  • Used to attach ropes or cables to secure objects by screwing the threaded end into a structure, with the loop providing an anchor point.
  • Carbon steel zinc plated.
  • Complete with nut.
  • Rolled threads.

Product Data

  • Thread : M6 (6x1mm)
  • Overall Length 50.000 mm
    (Equiv. 1.969 in.)
  • Shank Length 40.000 mm
    (Equiv. 1.575 in.)
  • Thread Length 6.000 mm
  • Eye Inside Diameter 6.000 mm
Country of Origin: US
