KF060M-040-6L-PBR - Datasheet
MBA
Category Information

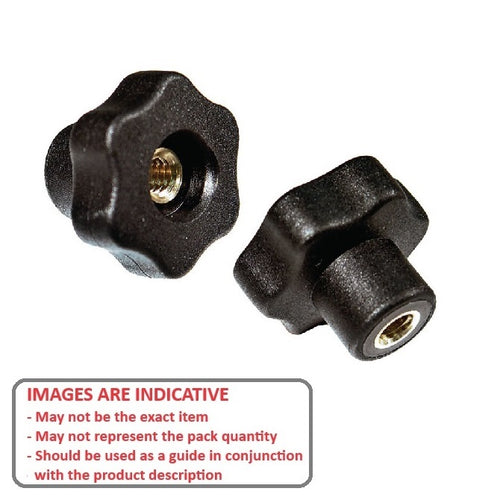

Knobs - Lobe - Six Lobe - Female - Through HoleThrough Hole Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

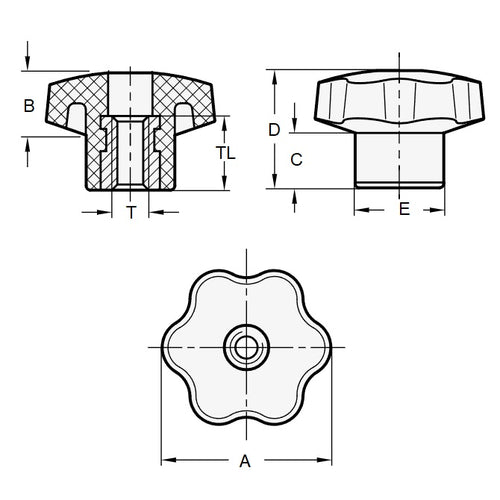

- Thread Size : M6 (6x1mm)
- Head Diameter (A) 40.00 mm
- Thread Length 18.0 mm
- Colour Black
- Hub Diameter (E) 17.00 mm
- Hub Length (C) 12.50 mm
- Knob Height (D) 24.50 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- 4273T81
- Reid Tool® JCL-3510
- JCL3510
