KF060M-032-7LQA - Datasheet

MBA

Category Information

Knobs - Lobe - Seven Lobe - Female - Quick Acting

Quick Acting Female Seven Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M6 (6x1mm)
  • Head Diameter (A) 32.00 mm
    (Equiv. 1.26 in.)
  • Colour Black
  • Hub Diameter (D) 12.00 mm
  • Hub Length (C) 10.00 mm
  • Knob Height (B) 19.50 mm
  • E 6.20 mm
  • Material Steel Hub
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KPB-1130
  • KPB1130
View full details

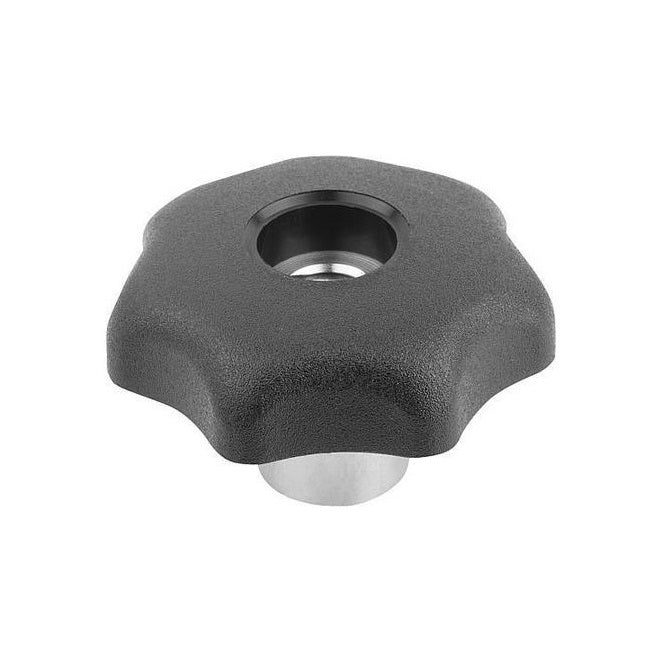

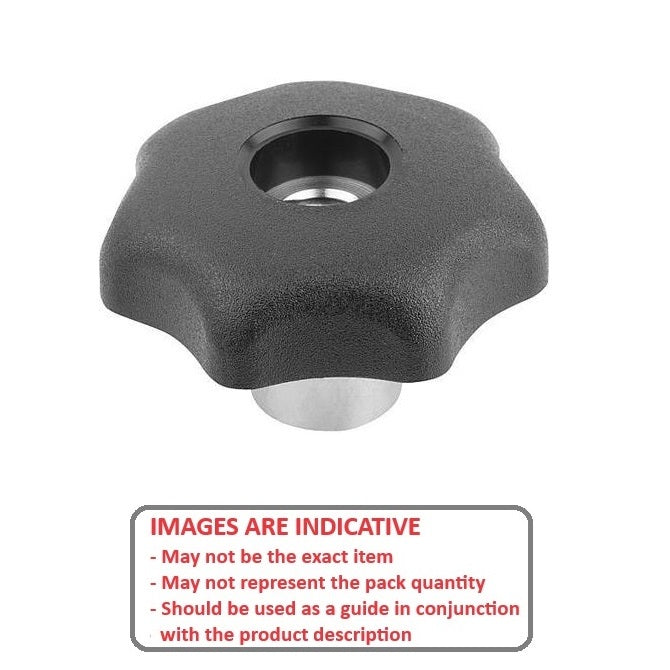

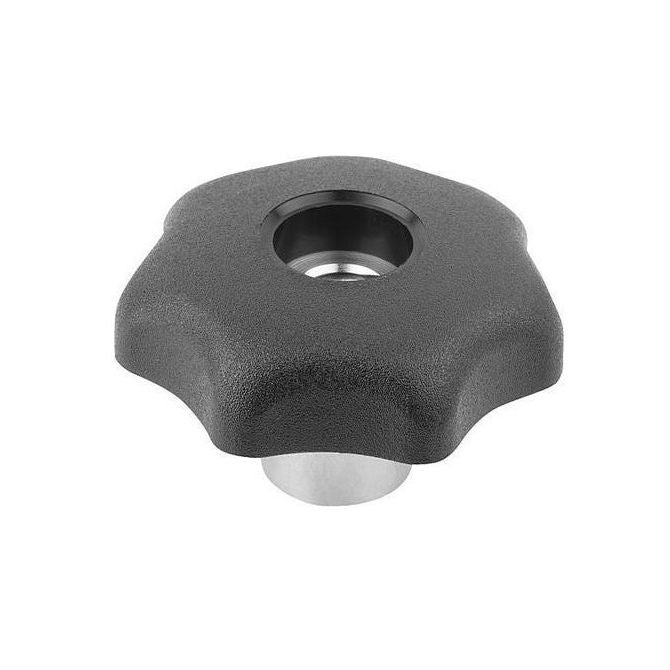

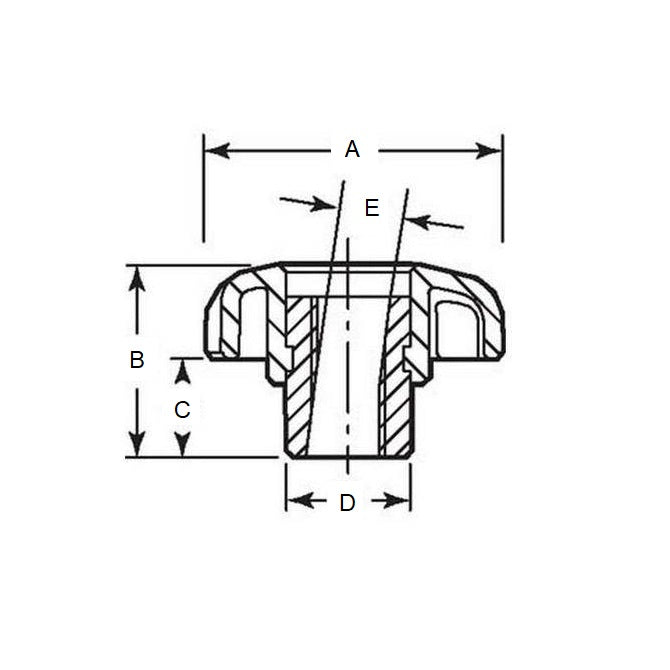

KF060M-032-7LQADiagramKF060M-032-7LQAImage
