KF060M-032-5L-BR - Datasheet

MBA

Category Information

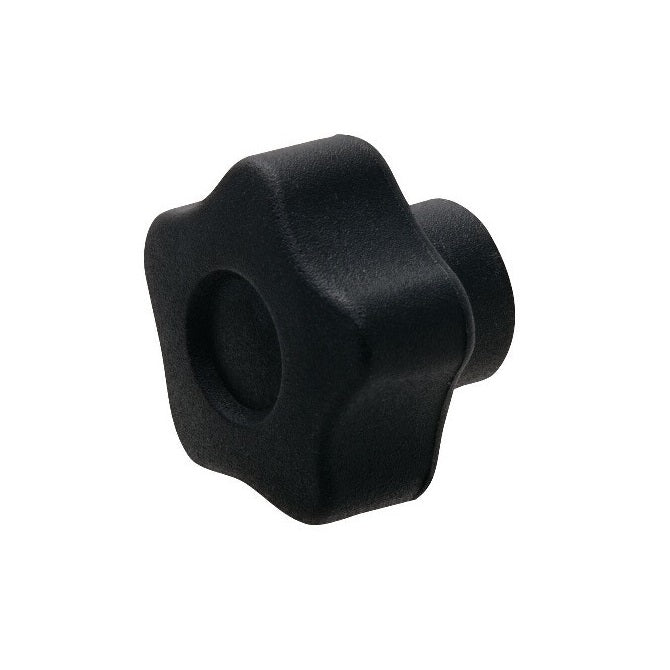

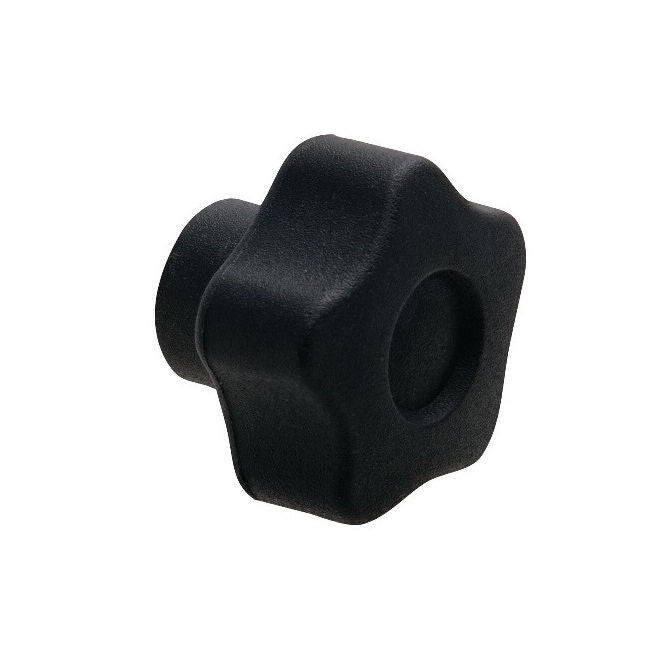

Knobs - Lobe - Five Lobe - Female - Standard

Standard Female Five Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M6 (6x1mm)
  • Head Diameter (A) 32.00 mm
  • Thread Length 9.0 mm
  • Colour Black
  • Hub Diameter (C) 16.00 mm
  • Hub Length (F) 11.20 mm
  • Knob Height (B) 22.40 mm
  • Material Brass
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi® C-NWJF6
  • Reid Tool® KPB-1028
  • CNWJF6
  • KPB1028
