KF060M-030-6L-PBR - Datasheet
MBA
Category Information

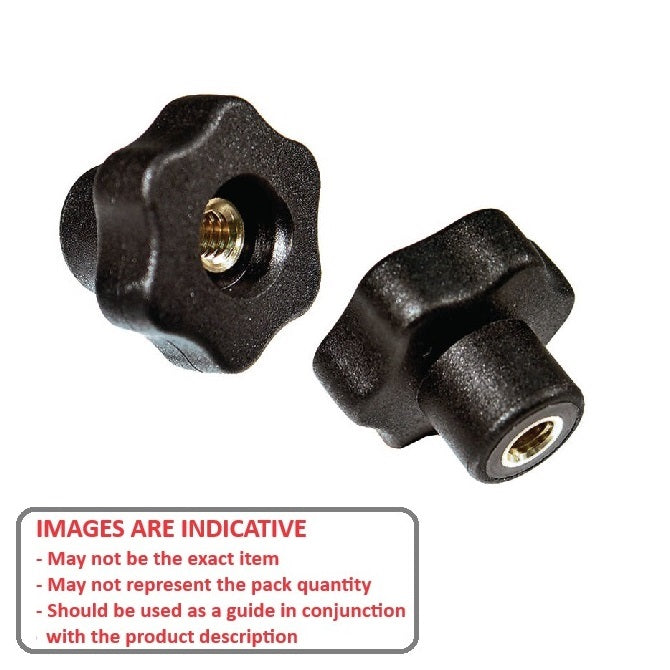

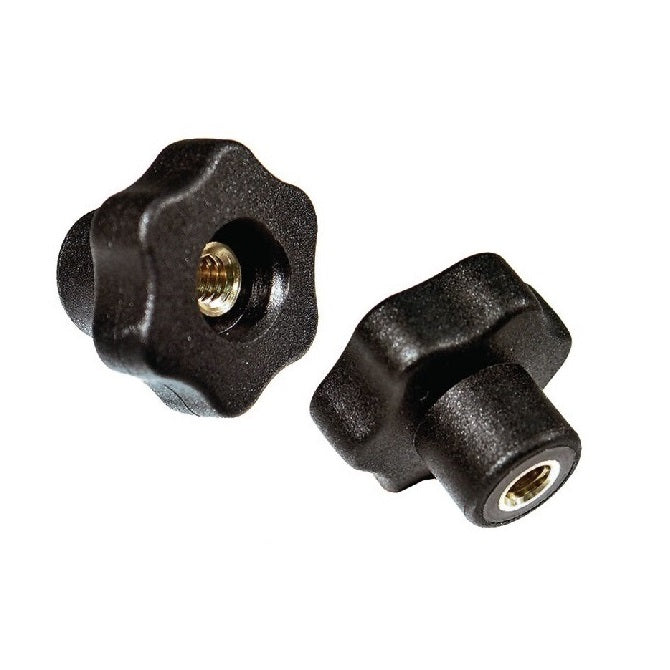

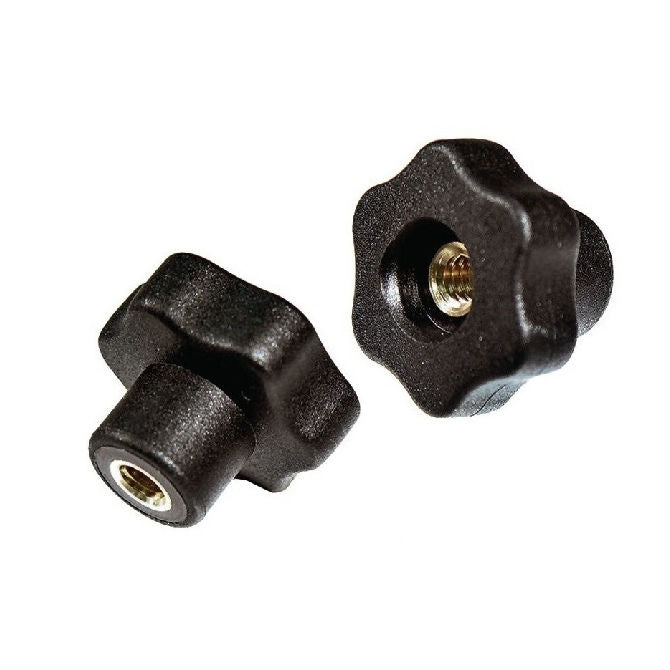

Knobs - Lobe - Six Lobe - Female - Through HoleThrough Hole Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : M6 (6x1mm)

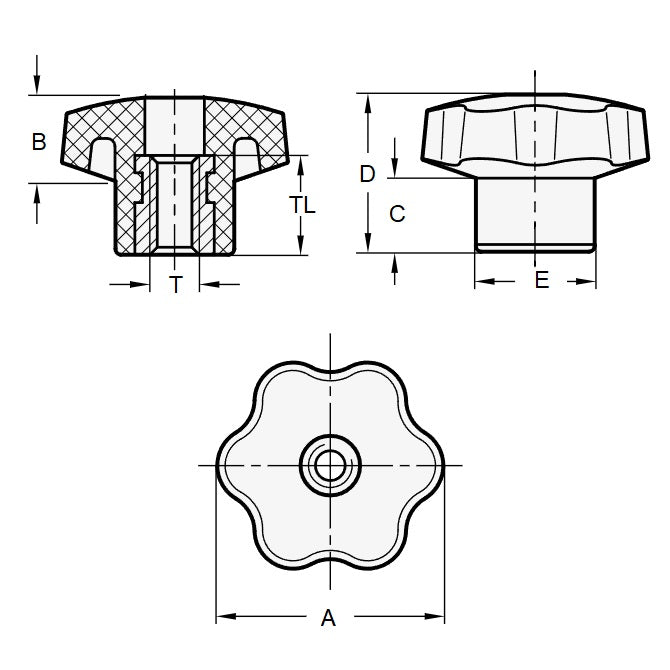

- Head Diameter (A)
30.00
mm
(Equiv. 1.181 in.) - Thread Length
18.0
mm
(Equiv. 0.709 in.) - Colour Black
- Hub Diameter (E) 15.00 mm
- Hub Length (C) 11.00 mm
- Knob Height (D) 22.00 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- JCL-3505
- JCL3505
