KF060M-025-7L-ST - Datasheet
MBA
Category Information

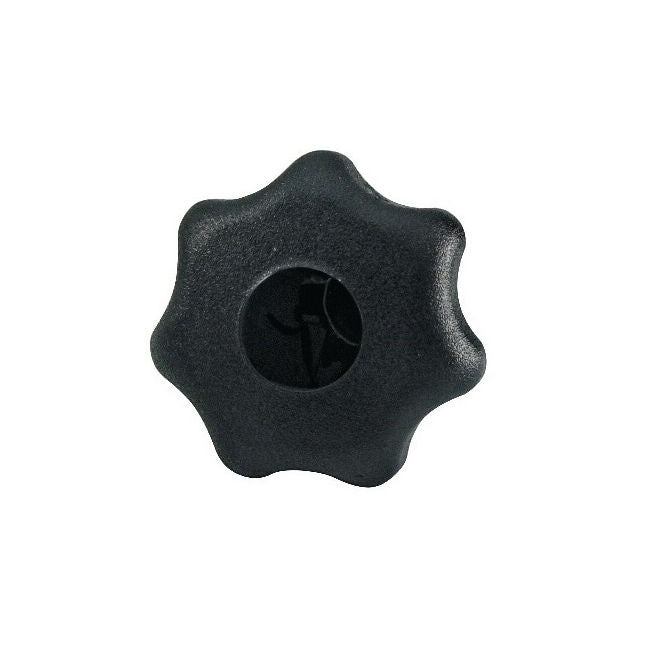

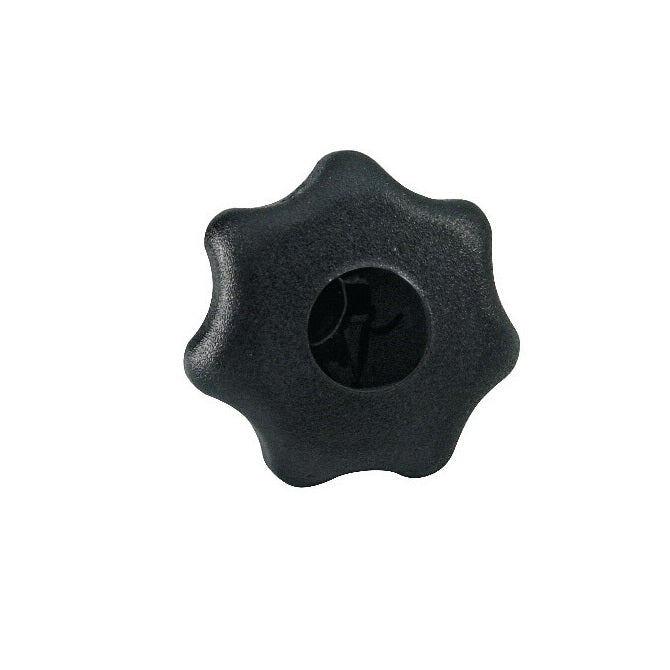

Knobs - Lobe - Seven Lobe - Female - StandardStandard Female Seven Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : M6 (6x1mm)
- Head Diameter (A)
25.00
mm
(Equiv. 0.984 in.) - Thread Length
10.0
mm
(Equiv. 0.394 in.) - Colour Black
- Hub Diameter (C) 12.00 mm
- Hub Length (D) 8.00 mm
- Knob Height (B) 16.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 60795K12
- KPB-1080
- KPB1080
