Miniature Bearings Australia
KM060M-015-KPC16 - Datasheet
MBA
Category Information

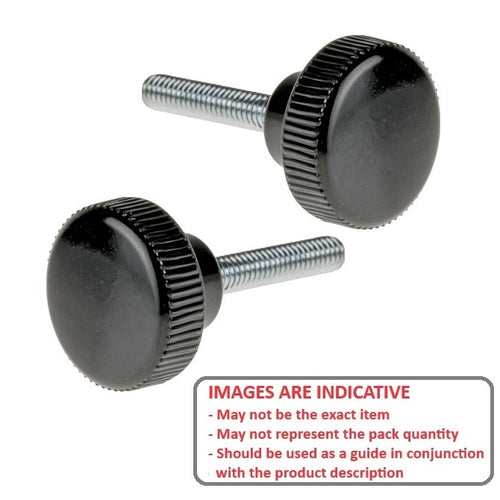

Knobs - Knurled - Male - PlasticPlastic Male Knurled Knobs. Black ABS Plastic head.
- Zinc plated steel thread.
Product Data
- Thread Size : M6 (6x1mm)

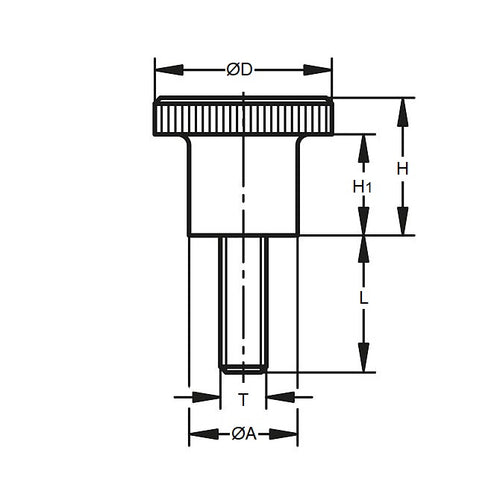

- Head Diameter (D)
15.00
mm
(Equiv. 0.591 in.) - Screw Length (L)
16.0
mm
(Equiv. 0.63 in.) - Colour Black
- Shank Diameter (A) 10.0 mm
- Shank Length (H1) 1.0 mm
- Width (H) 8.0 mm
- Material Polypropylene with Steel Shank
