KF060M-030-PP - Datasheet
MBA
Category Information

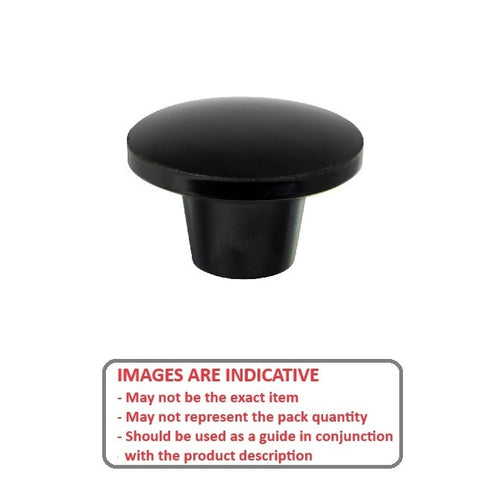

Knobs - Push PullPush Pull Knobs. Contoured knobs plated Steel threaded female inserts.
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- Fitted with generous dome to shank ratios to accommodate both push and pull operations.
- Temperature Range: -30oC to +140oC.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

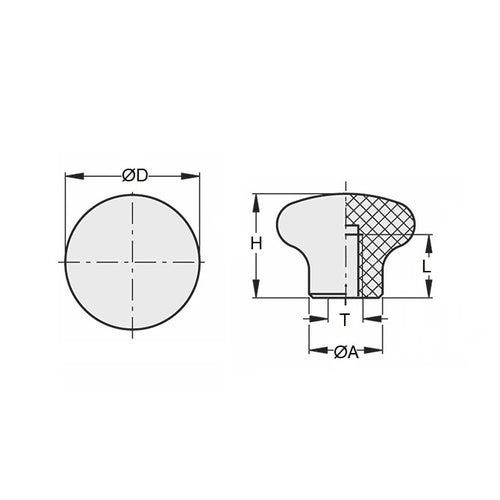

- Thread Size : M6 (6x1mm)
- Head Diameter (D)
30.00
mm
(Equiv. 1.181 in.) - Thread Length (L)
13.5
mm
(Equiv. 0.531 in.) - Height (H) 26.00 mm
- Shank Diameter (A) 15.00 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- 712-026
- 712026
