Miniature Bearings Australia
KF060M-017-THM - Datasheet
MBA
Category Information

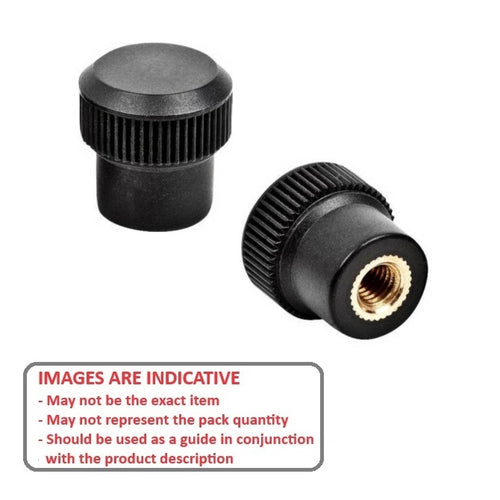

Knobs - Thumb - FemaleFemale Thumb Knobs. Plastic (high grade gloss black phenolic) with Steel insert.
- An expanded range may be available on special order. Please enquire.
- Temperature Range: -30oC to +140oC.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

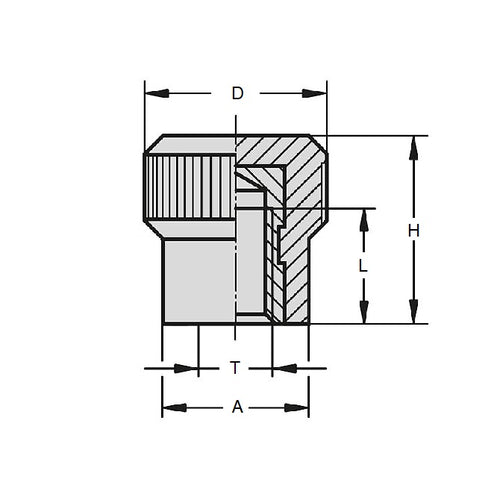

- Thread Size : M6 (6x1mm)
- Head Diameter (D)
17.00
mm
(Equiv. 0.669 in.) - Thread Length (L)
9.0
mm
(Equiv. 0.354 in.) - Height (H) 22.00 mm
- Shank Diameter (A) 12.00 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- 712033
- 712-033
