Miniature Bearings Australia
EZL-060-095C-103-S3 - Datasheet
MBA
Category Information

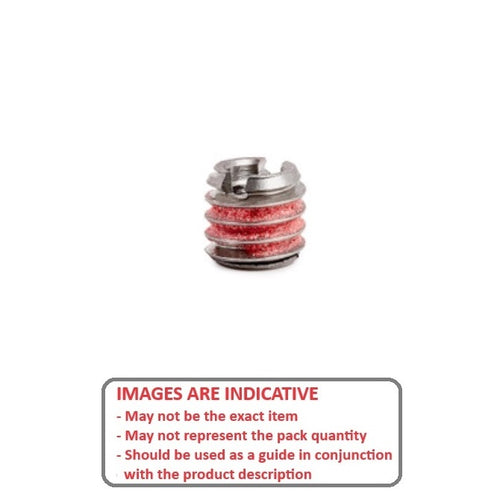

Thread Repair - Inserts - EZ-Lok - Solid Stainless SteelSolid Stainless Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required. Simply drill and tap the hole to suit the external thread.
- Install with a bolt and wrench
- Metric, UNC and UNF
Product Data
- Internal Thread : M6 (6x1mm)
- Length
10.31
mm
(Equiv. 0.406 in.) - External Tap Size 3/8-16 UNC (9.53mm)
- Tapping Hole Size 7.94 mm
- Material Stainless Steel 303 PV (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 653-6
- 97120A110
- 6536
