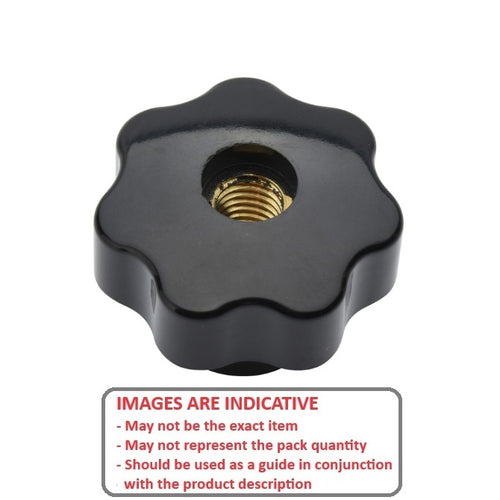

KF060M-025-7L-P - Datasheet

MBA

Product Data

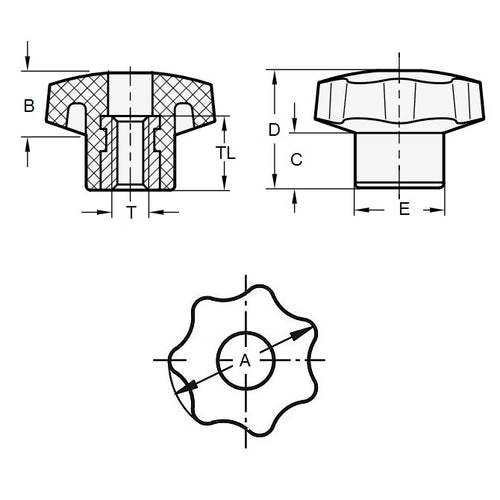

• Thread Size : M6 (6x1mm) _{+ 0.10 / - 0.00}
• Head Diameter (A) 25.0 mm _{+ 0.00 / - 0.10}
  (Equiv. 0.984 in.)
• Thread Length 12.0 mm _{+ 0.00 / - 0.12}
  (Equiv. 0.472 in.)
• Colour Black
• Hub Diameter (C) 16.00 mm
• Hub Length (D) 9.00 mm
• Knob Height (B) 20.0 mm
• Material Brass

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-NLZT6
• CNLZT6
