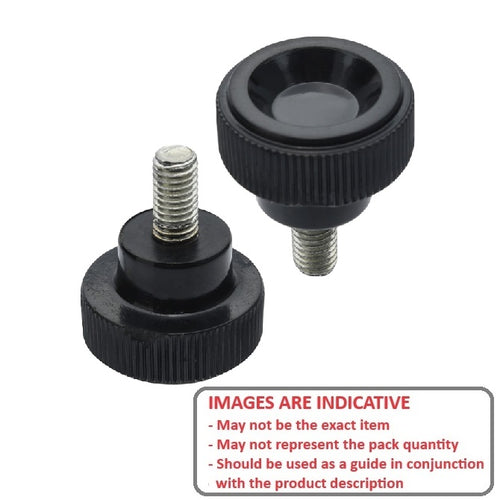

KM060M-025-KND30-PH - Datasheet

MBA

Product Data

• Thread Size : M6 (6x1mm) _{+ 0.10 / - 0.00}

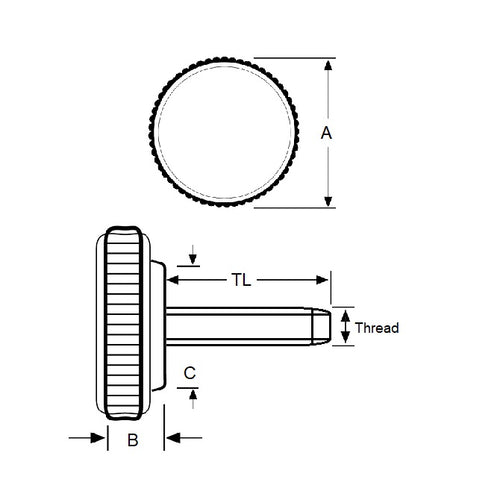

• Head Diameter (A) 24.5 mm _{+ 0.00 / - 0.10}
  (Equiv. 0.965 in.)
• Thread Length 30.0 mm _{+ 0.00 / - 0.12}
  (Equiv. 1.181 in.)
• Colour Black
• Style Disc
• Hub Diameter (E) 18.50 mm
• Hub Length (D) 18.50 mm
• Knob Height (C) 16.0
• Material Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-NDXM6-30
• CNDXM630
