SC640M-110-C-SK-BO - Datasheet
MBA
Category Information

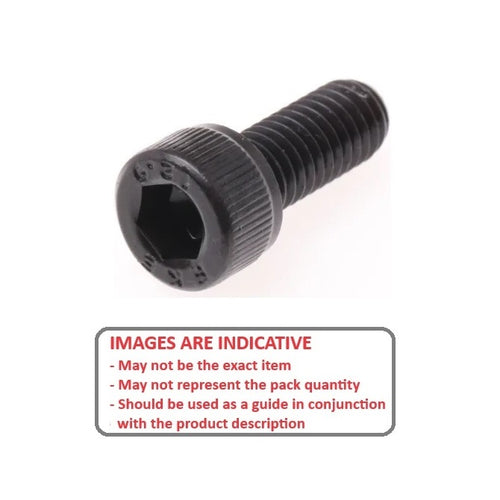

Screws - Socket Cap - Alloy Steel - Black OxideBlack Oxide Alloy Steel Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : M64 (64x6mm)
- Thread Length (L)
110
mm
(Equiv. 4.331 in.) - Material Black Oxide Carbon Steel 12.9
- Head Length (B Max.) 64 mm
- Head Diameter (A Max.) 96.5 mm
- Drive Depth (E) 38 mm
- Shank Diameter (C) 63.00 - 64.00 mm
- Hex Key (D) 46.00 mm
- Pitch 6.00 mm
- Threads Per Inch 4.230 TPI
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi CSH-ST-M64-110
- CSHSTM64110
