KLI-060M-120-12-SS - Datasheet
MBA
Category Information

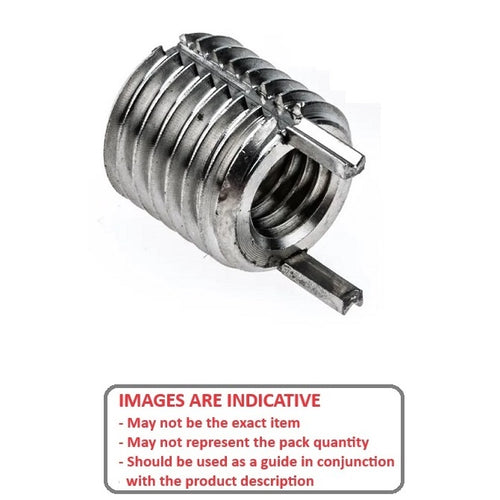

Thread Repair - Inserts - KeylockingKeylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.
- Steel or 303 Stainless Steel as indicated in the tables
- Maximum strength and reliability.
- Positive mechanical lock against rotation:.

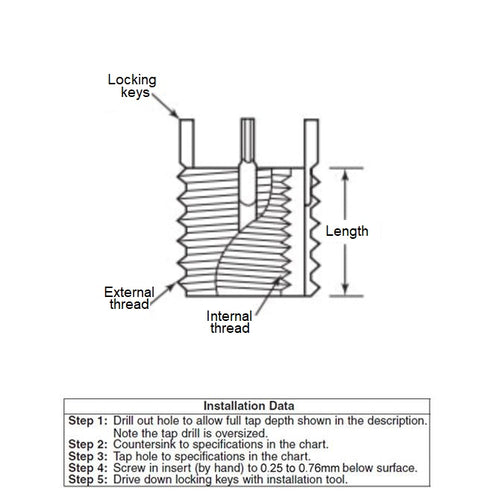

- The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
- Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.
Product Data
- Internal Thread : M6 (6x1mm)
- External Thread M12 x 1.25
- Length
12.00
mm
(Equiv. 0.472 in.) - Tap Drill Diameter 10.80 mm
- Countersink Diameter 12.25 mm
- Locking Keys 4
- Tapped Hole Depth 14.50 mm
- Removal Drill Size 9.50 mm
- Removal Drill Depth 4.75 mm
- Installation Tool KLI-64765RS
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 93715A375
- KIHD-6
- KIHD6
- KLI-66365
- KLI66365
