KLI-060M-100-10-SS - Datasheet

MBA

Category Information

Thread Repair - Inserts - Keylocking

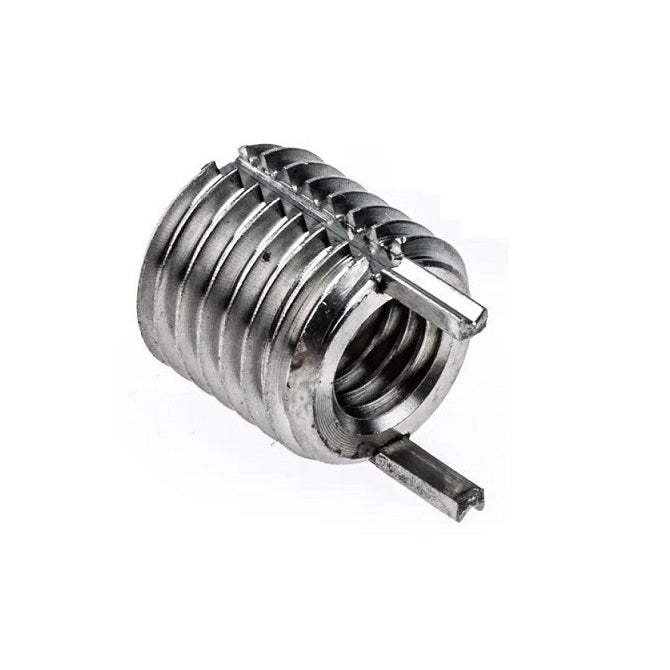

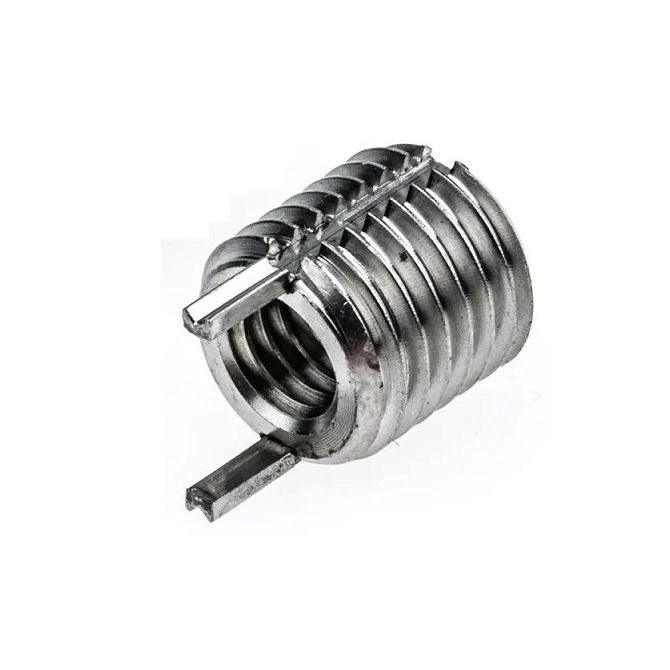

Keylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.

  • Steel or 303 Stainless Steel as indicated in the tables
  • Maximum strength and reliability.
  • Positive mechanical lock against rotation:.
  • The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
  • Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.

Product Data

  • Internal Thread : M6 (6x1mm)
  • External Thread M10 x 1.25
  • Length 10.00 mm
    (Equiv. 0.394 in.)
  • Tap Drill Diameter 8.80 mm
  • Countersink Diameter 10.25 mm
  • Locking Keys 2
  • Tapped Hole Depth 11.50 mm
  • Removal Drill Size 7.50 mm
  • Removal Drill Depth 4.75 mm
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 93715A610
  • KLI-66352
  • KI6
  • KLI66352
  • KI-6
