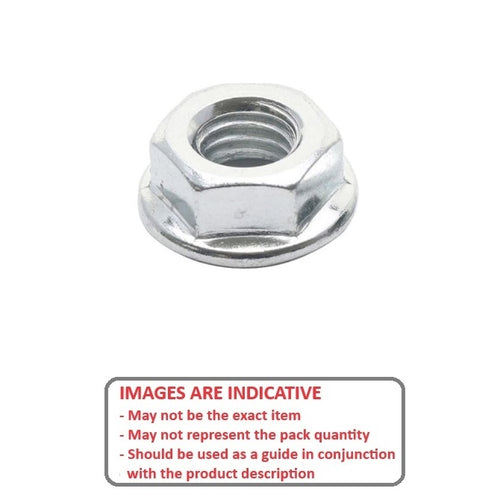

NT060M-F-ZP - Datasheet

MBA

Product Data

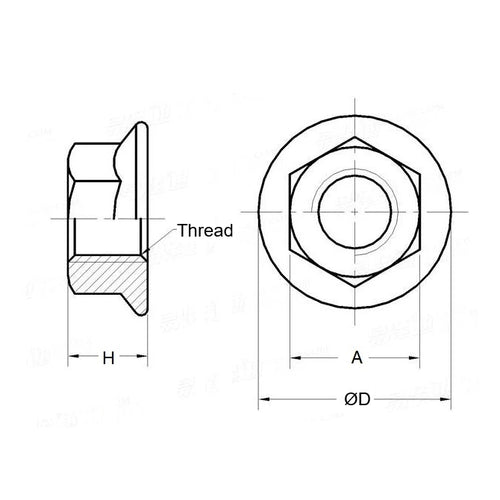

• Thread Size : M6 (6x1mm) _{+ 0.10 / - 0.00}
• Material Zinc Plated Steel _{+ 0.00 / - 0.10}
• Height 5.8 mm _{+ 0.00 / - 0.12}
  (Equiv. 0.228 in.)
• Across Flats 9.8 mm
• Flange Diameter 13.2 mm
• Material Plated Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
