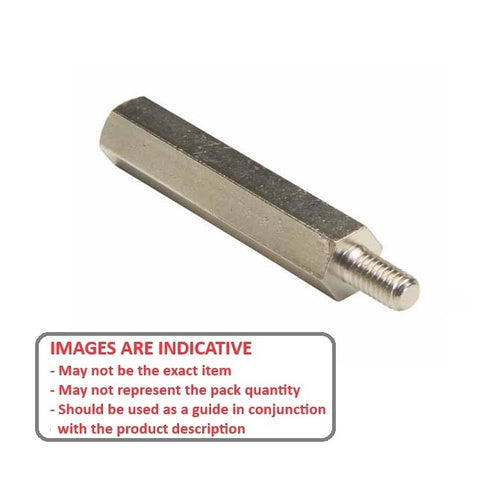

SHX-TP-0600-10-100-MZ - Datasheet
MBA
Product Data

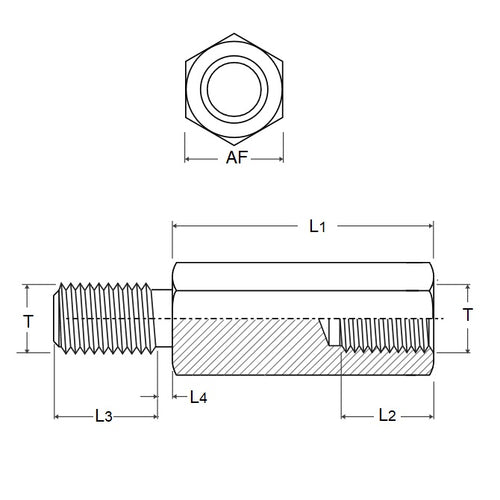

- Thread Size : M6 (6x1mm)
- Stud Length (L3) 9.000 mm
- Base Length (L1) 100 mm
- Across Flats (A/F) 10.00 mm
- Bore Thread Length (L2) 12.00 mm
- Finish Nickel Electroplating
- Material Steel - Mild
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-PLSBWRK10-100
- CPLSBWRK10100
