KM060M-032-3L25 - Datasheet

MBA

Category Information

Knobs - Lobe - Three Lobe - Male - Standard

Standard Male Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M6 (6x1mm)
  • Head Diameter (A) 32 mm
    (Equiv. 1.26 in.)
  • Thread Length 25 mm
    (Equiv. 0.984 in.)
  • Colour Black
  • Hub Diameter (C) 17.00 mm
  • Hub Length (D) 10.000 mm
  • Knob Height (B) 19.00 mm
  • Material Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NSJGM6-25
  • CNSJGM625
View full details

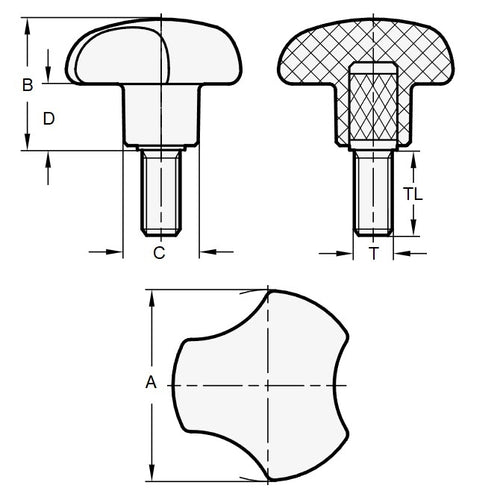

KM060M-032-3L25DiagramKM060M-032-3L25Image
