KF060M-032-3L - Datasheet

MBA

Category Information

Knobs - Lobe - Three Lobe - Female - Standard

Standard Female Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M6 (6x1mm)
  • Head Diameter (A) 32 mm
    (Equiv. 1.26 in.)
  • Thread Length 12 mm
    (Equiv. 0.472 in.)
  • Colour Black
  • Hub Diameter (C) 19.00 mm
  • Hub Length (D) 17.000 mm
  • 10.00 mm
  • Material Brass
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NSJGF6
  • CNSJGF6
View full details

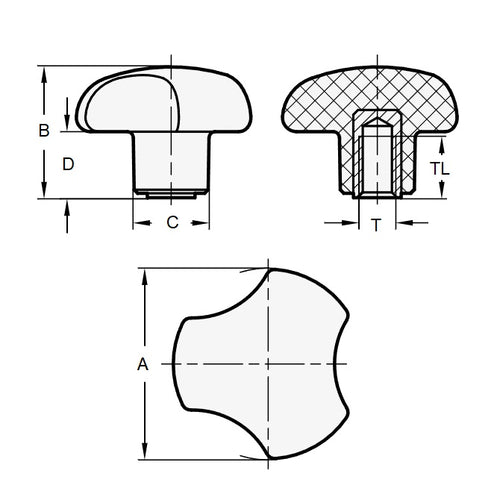

KF060M-032-3LDiagramKF060M-032-3LImage
