KF060M-025-7L - Datasheet

MBA

Category Information

Knobs - Lobe - Seven Lobe - Female - Standard

Standard Female Seven Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M6 (6x1mm)
  • Head Diameter (A) 25 mm
    (Equiv. 0.984 in.)
  • Thread Length 9 mm
    (Equiv. 0.354 in.)
  • Colour Black
  • Hub Diameter (C) 20.00 mm
  • Hub Length (D) 15.000 mm
  • Knob Height (B) 9.00 mm
  • Material Brass
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NLZTF6
  • CNLZTF6
View full details

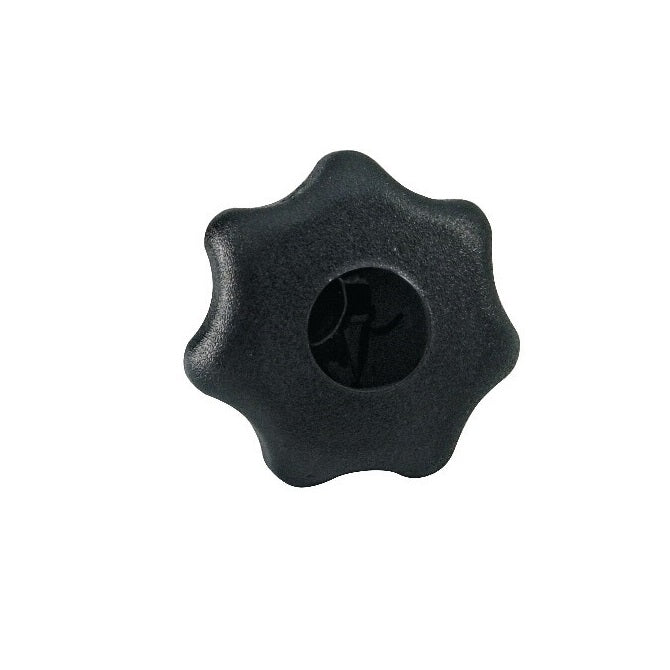

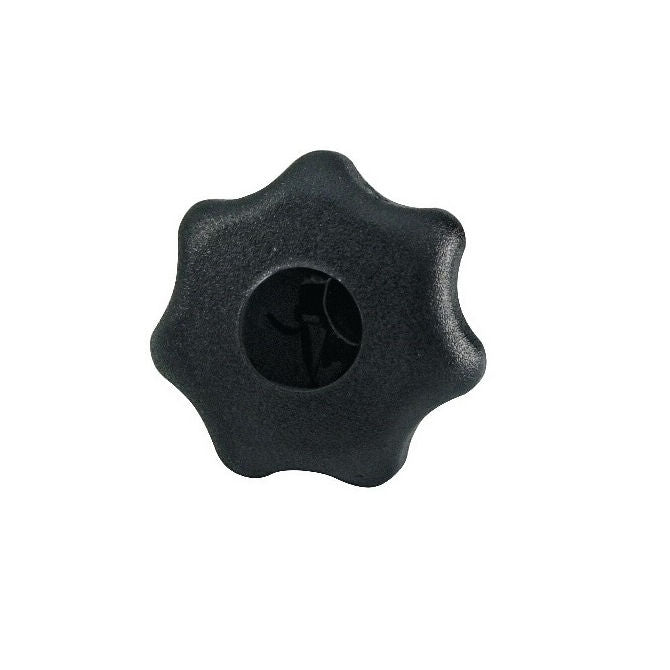

KF060M-025-7LDiagramKF060M-025-7LImage
