KF060M-025-KN-PH - Datasheet

MBA

Category Information

Knobs - Knurled - Female - Plastic

Plastic Female Knurled Knobs. Black ABS Plastic head.

  • Temperature Range: -30oC to +140oC.

Product Data

  • Thread Size : M6 (6x1mm)
  • Head Diameter (D) 24.500 mm
    (Equiv. 0.965 in.)
  • Screw Depth (L) 11.000 mm
    (Equiv. 0.433 in.)
  • Colour Black
  • Brass
  • Top Dia. (D1) 16.00 mm
  • Hub Length (H1) 16.500 mm
  • 5.00
  • Material Phenolic
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NDZF6
  • Misumi C-NZWF6
  • CNZWF6
  • CNDZF6
View full details

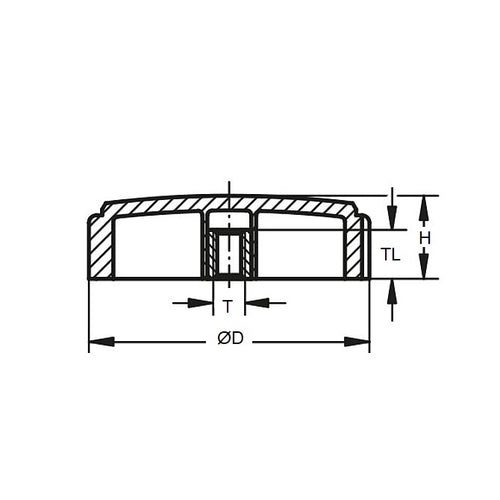

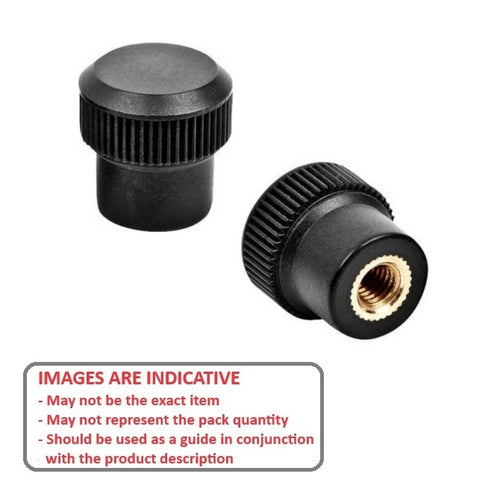

KF060M-025-KN-PHDiagramKF060M-025-KN-PHImage
