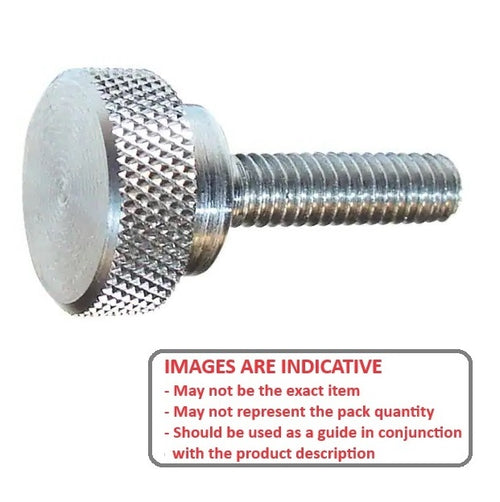

THS060M-016-K-3-SHL - Datasheet

MBA

Product Data

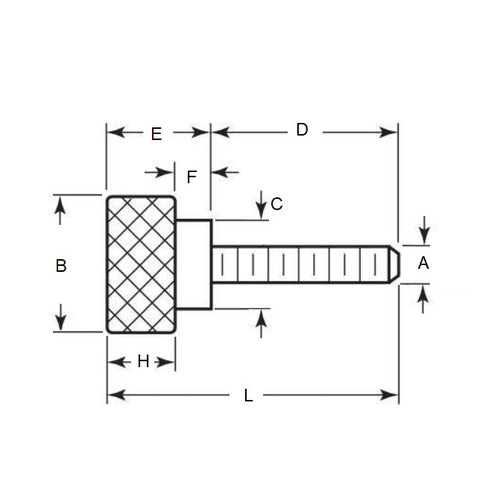

• Thread Size (A) : M6 (6x1mm)
• Thread Length (D) 16.00 mm
  (Equiv. 0.63 in.)
• Overall Length (L) 31.000 mm
  (Equiv. 1.22 in.)
• Head Diameter (B) 24.00 mm
• Shoulder Diameter (C) 12.00
• Shoulder Length (F) 10.00
• Head Height incl Shoulder (E) 15.00 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
