SC060MF-012-C-SK-BO - Datasheet
MBA
Category Information

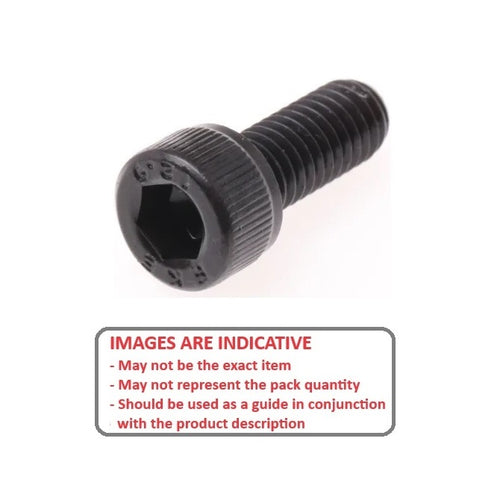

Screws - Socket Cap - Alloy Steel - Black OxideBlack Oxide Alloy Steel Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : M6 Fine (6x0.75mm)
- Thread Length (L)
12
mm
(Equiv. 0.472 in.) - Material Black Oxide Carbon Steel 12.9
- Head Length (B Max.) 6 mm
- Head Diameter (A Max.) 10 mm
- Drive Depth (E) 3 mm
- Shank Diameter (C) 5.82 - 6.00 mm
- Hex Key (D) 5.00 mm
- Pitch 0.75 mm
- Threads Per Inch 33.870 TPI
- Min thread Length Fully Threaded mm
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi CSHH-ST-MS6-12
- CSHHSTMS612
